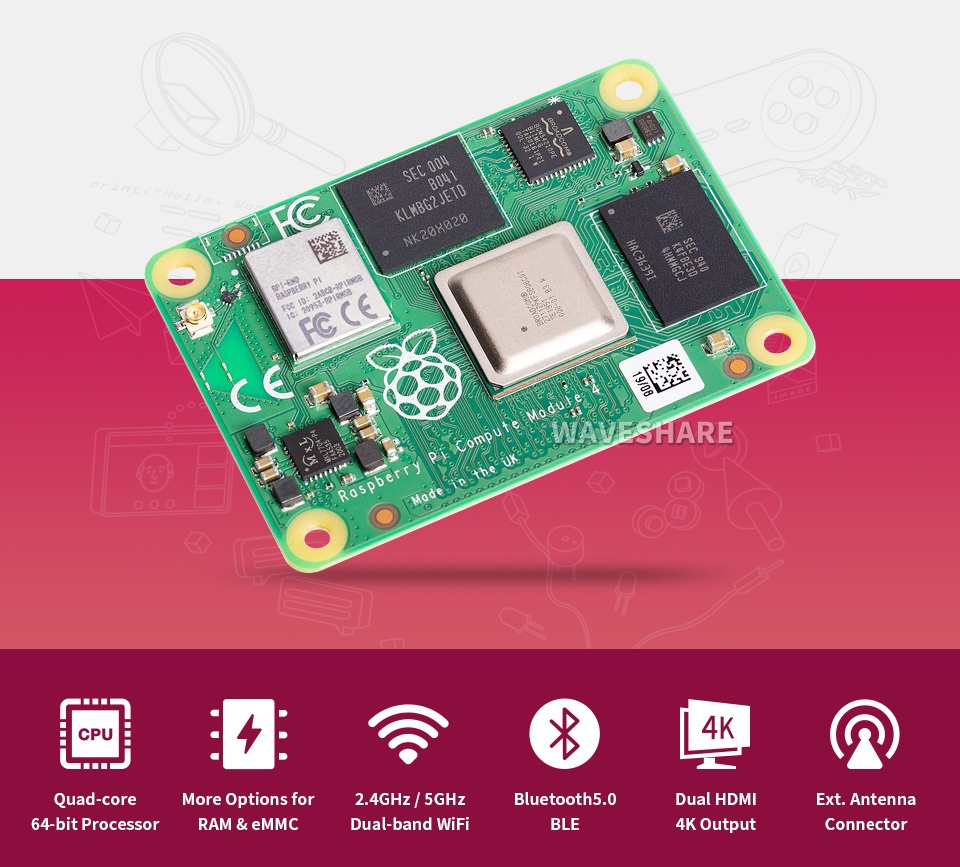

CM4104016 Raspberry Pi Compute Module 4 - 4GB RAM, 16GB eMMC

NEW!!!
Completely Upgraded, More Powerful
Upgraded processor BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, more powerful performance
More options for RAM (1GB/2GB/4GB/8GB), competent for large-scale data compilation
Faster eMMC Flash storage, up to 100 MBytes/s data rate, which is four times faster than the CM3+

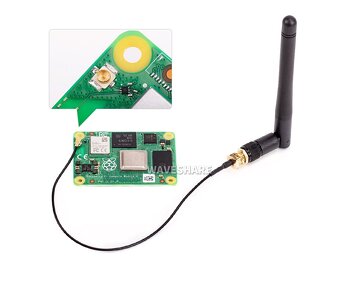

Option for fully certified radio module, the same one used on Pi4B, supports either PCB trace antenna or external antenna, more suitable for industrial applications
Adopts B to B connectors, more stable than the Goldfinger edge connector of previous generations
Onboard new Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
Onboard new PCIe Gen 2 x1 interface, allows connecting more useful modules
Specifications
PROCESSOR Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
MEMORY 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)
STORAGE 0GB (Lite), 8GB, 16GB or 32GB eMMC Flash (depending on variant)
CONNECTIVITY Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options
Onboard Gigabit Ethernet PHY supporting IEEE1588
1 × USB 2.0 interface
PCIe Gen 2 x1 interface
28 GPIO signals
SD card interface for SD card (for use only with Compute Module 4 variants without eMMC)
VIDEO Dual HDMI interface (up to 4Kp60 supported)
2-lane MIPI DSI display interface
2-lane MIPI CSI camera interface
4-lane MIPI DSI display interface
4-lane MIPI CSI camera interface
MULTIMEDIA H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
INPUT POWER 5V DC
OPERATING VOLTAGE -20°C ~ 85°C ambient
DIMENSIONS 55 × 40 × 4.7mm
