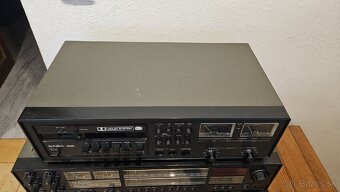

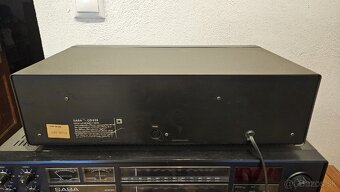

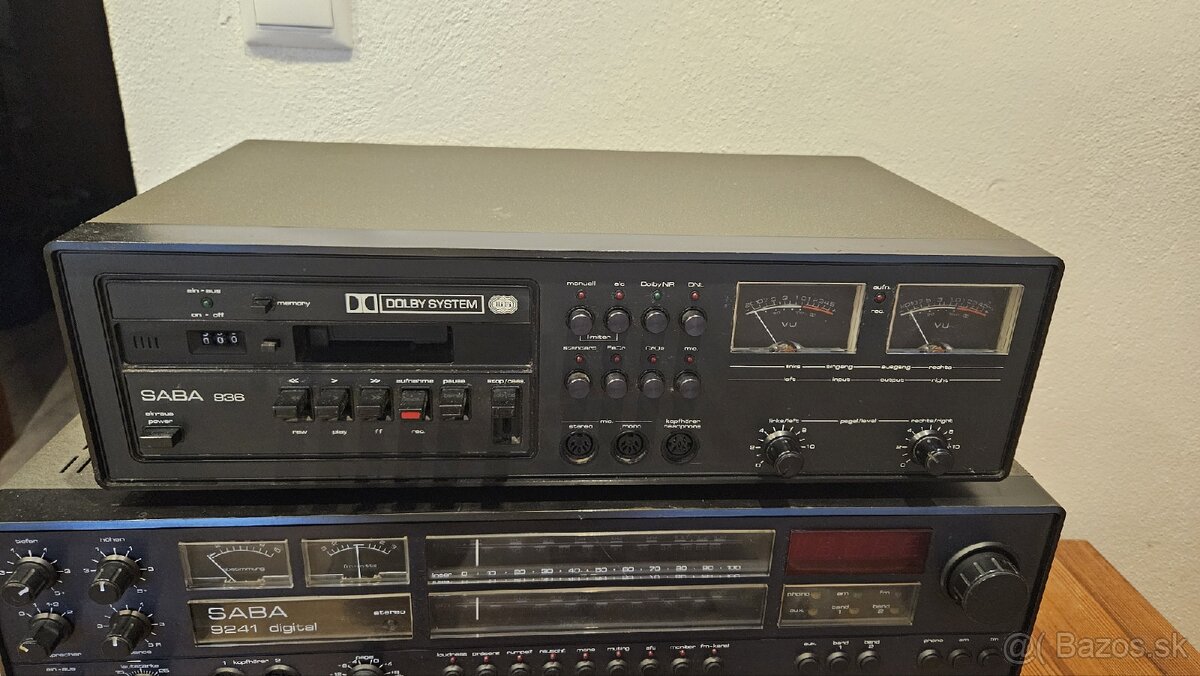

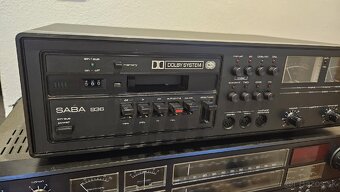

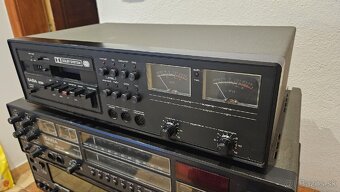

SABA Tape deck 936 na servis

Ponúkam na predaj deck Saba v peknom optickom stave, vyžaduje servis. Nepretáča dopredu ani dozadu. Treba vymenit podsvietenie VU metrov.

Manufacturer: SABA
Model: ULTRA HiFi professional CD 936
Type: Cassette Tape Deck
Years of manufacture: 1977 - 1978
Made in: Germany
Colors: Anthracite, Metallic Silver
Dimensions: 440 x 135 x 330 mm (WxHxD)
Weight:
Original price approx: 698 DM

Connections

Number of inputs:
Microphone 0,3 ... 30 mV / 2.2 kOhm
Radio 0,1 ... 2 mV Phono 0,3 ... 3 V / 3.3 MOhm

Number of outputs:
Radio 700 mV/3.3 kOhm
Headphones 700 mV/100...2000 Ohm


Specifications
Sound heads:
Motors:
Variation in synchronism: ≤ ± 0.2% (DIN 45507).
Tape types: Normal, ferrochrome, chromium dioxide tape.
Frequency response: 20 Hz ... 16.5 kHz Output "Radio" Chrom-Ban
Distortion factor: < 2%
Signal-to-noise ratio: 56 dB according to IEC (DNL), 60 dB according to IEC (Dolby)
Auto-Reverse: no
Title search: no
Dolby NR
MPX filter: no
Fader: no
Pitch control: no
CD synchro recording: no

Special Features

Analogue level meters
Automatic or manual left/right level control
