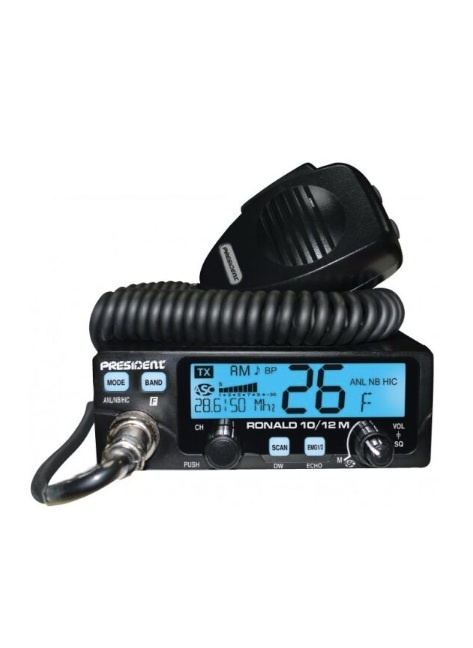

CB radio stanica president ronald 10/12

predám CB stanicu

Modulation modes : AM / FM
Frequency ranges : from 28.000 MHz to 29.700 MHz / 24.890 MHz to 24.990 MHz
Antenna impedance : 50 ohms
Power supply : 12 V
Size : 125 (W) x 175 (D) x 45 (H) mm
Weight : 0,9 kg
Accessories supplied : power cord with fuse
1 microphone UP/DOWN and its hanger
1 mounting bracket with fixing screws
Transmission
Frequency allowance : +/- 300 Hz
Carrier power : 13 W AM (50 W PEP) / 35 W FM
Transmission interference : inferior to - 50 dBm
Audio response : 300 Hz to 3 KHz in AM/FM
Emitted power in the adj. channel : inferior to 20 µW
Microphone sensitivity : 3,0 mV
Drain : 7 A max. (with modulation)
Modulated signal distortion : 2%
Reception
Maxi. sensitivity at 20 dB sinad : 0,7 μV -110 dBm (AM) / 0,35 μV -116 dBm (FM)
Frequency response : 300 Hz to 3 kHz in AM/FM
Adjacent channel selectivity : 60 dB
Maximum audio power : 3 W
Squelch sensitivity : minimum : 0.2 μV - 120 dBm / maximum : 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 500 mA max
