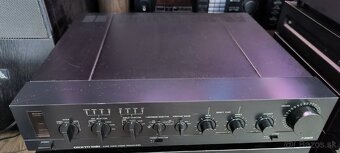

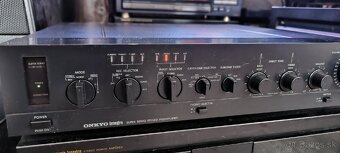

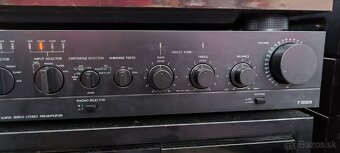

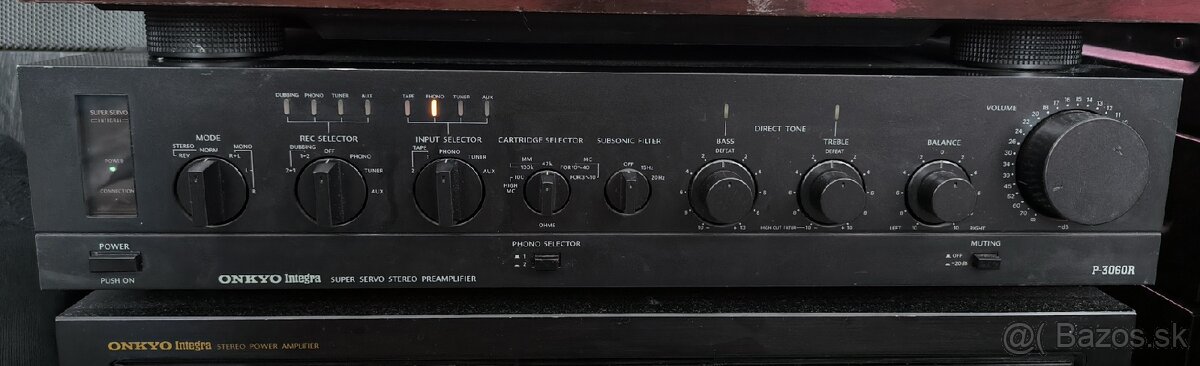

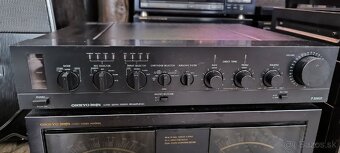

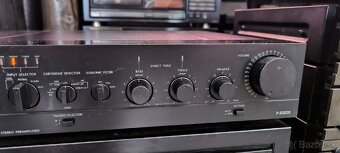

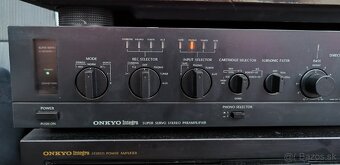

Onkyo integra P3060R prededzosilnovac

General

Manufacturer: Onkyo
Model: P-3060R
Type: Preamplifier
Years of manufacture: 1981 - 1983
Made in: Japan
Color: Black
Remote control: No
Power consumption: 30 watts
Dimensions: 450 x 99 x 403 mm (WxHxD)
Weight: 9.5 kg


Connections

Input (sensitivity/impedance)
Phono:
MM 2.5mV (100 kOhm, 47 kOhm),
High-MC 2,5mV (100 Ohm)
MC 130µV (100 Ohm, 330 Ohm)
Tape-Play, Aux, Tuner: 150 mV ( 47 kOhm )

Output (level/impedance)
Tape-Rec: 150 mV ( 2,2 kOhm )
Pre-Out: 1.0 V ( 220 Ohm ) (max. 20 V)

Technical Data

Frequency response: 0.8 - 170,000 Hz (+0/-3 dB)
Tone control
Bass: ±8 dB at 70 Hz Treble: ±8 dB at 20 kHz

Treble filter 6dB/octave at 7 kHz
Total harmonic distortion:
Phono-MM: 0.003%, 3 volts.
Phono-MC: 0.005%, 3 volts
Tuner, Aux, Tape: 0.002%, 3 volts
Noise voltage margin:
Phono-MM: 82 dB
Phono MC: 76 dB

Tuner: 93 dB

Special Features

Super-Servo
Record-Selector
Mono/Stereo/Reverse switch
Phono cartridge selector
Phono sensitivity selector
Hard gold plated connectors
