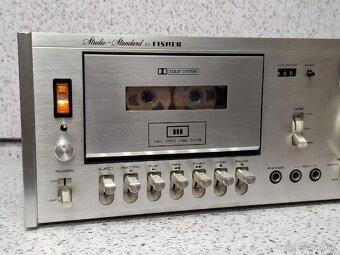

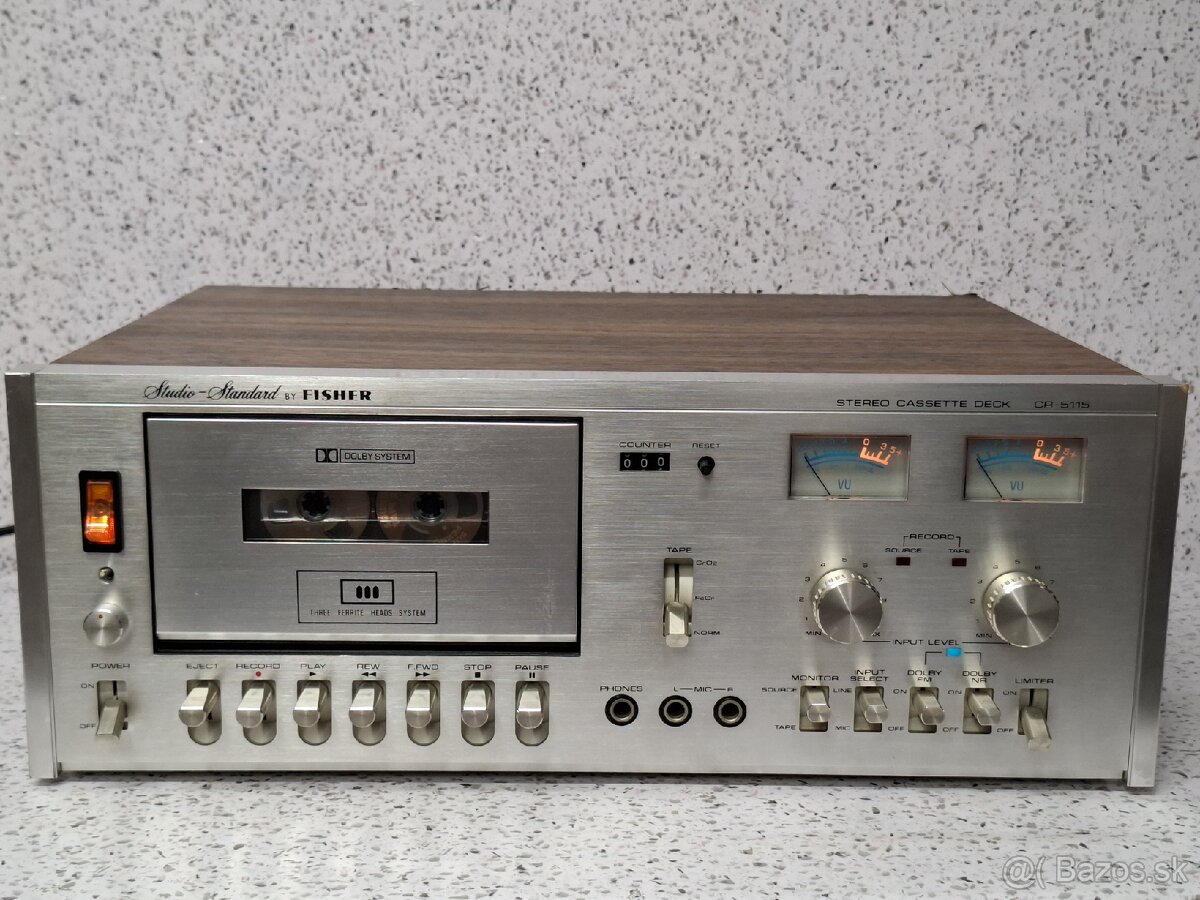

CR-5115 》Studio-Standard BY FISHER 》3-HEADS 》JAPAN

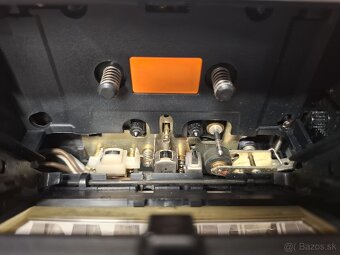

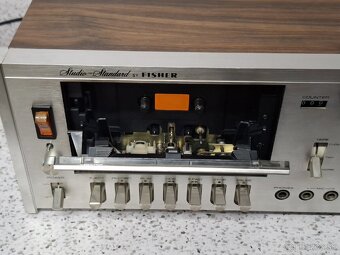

Predám na opravu - na náhradné diely - magnetofón Fisher - neprehráva / nepretáča.. nutná údržba.... tridenty - boli rozpadnute... vid foto...

Posielam kvalitné zabalené...



General

Manufacturer: FisherModel: CR-5115
Type: Cassette Tape Deck
Years of manufacture: 1977 - 1979
Made in: Japan
Color: Strato silver
Power consumption: 30 W
Dimensions: 415 x 150 x 300 mm (WxHxD)
Weight: 6 kg
Original price approx.: 800 DM

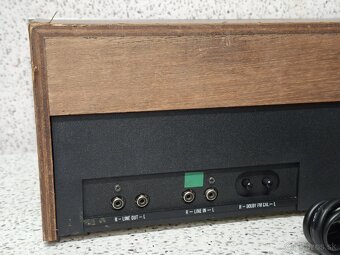

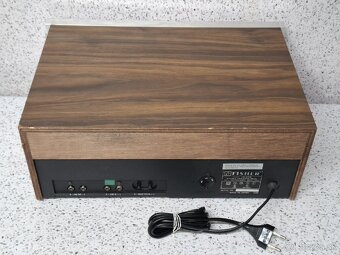

Connections:
Number of inputs:Line In 1, 2: 100 mV, 100 kOhm

Line In DIN: 20 kOhm

Microphone 1, 2 (2 x 6.3 mm jack): 0.2 mV, 600 Ohm
Line Out: 410 mV, 0.47 kOhm
Headphones adjustable (6.3 mm jack): 100 mV, 8 Ohm


Technical Data:

Track system: 4 track, 2 channel stereo

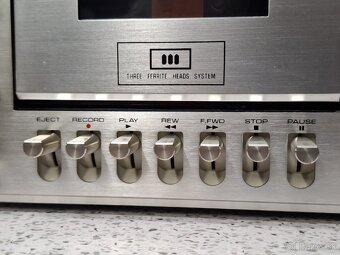

Audio heads: 3Recording, playback and erasing head
Motors: 2 》1 x Capstan drive, 1 x reels
Speed: 4,75 cm/ sSynchronisation fluctuation: 0.07 % WRMS
Band types: LN+LH, CrO2, FeCr (I, II, III)
Frequency response ± 3 dB:
Type I: 30 - 14'000 Hz

Type II: 30 - 17'000 Hz Type III: 30 - 18'000 Hz

Signal-to-noise ratio:> 60 dB (Dolby off)
Dolby on: Improvement up to 10 dB above 5,000 Hz.
Distortion factor: 1.5Rewind time (C 60): 60 s
Cancellation attenuation: better 70 dB
Premagnetization: 100 khz
Dolby NR: yes
Dolby FM: yes


Special features:
Memory
Limiter
Timer
