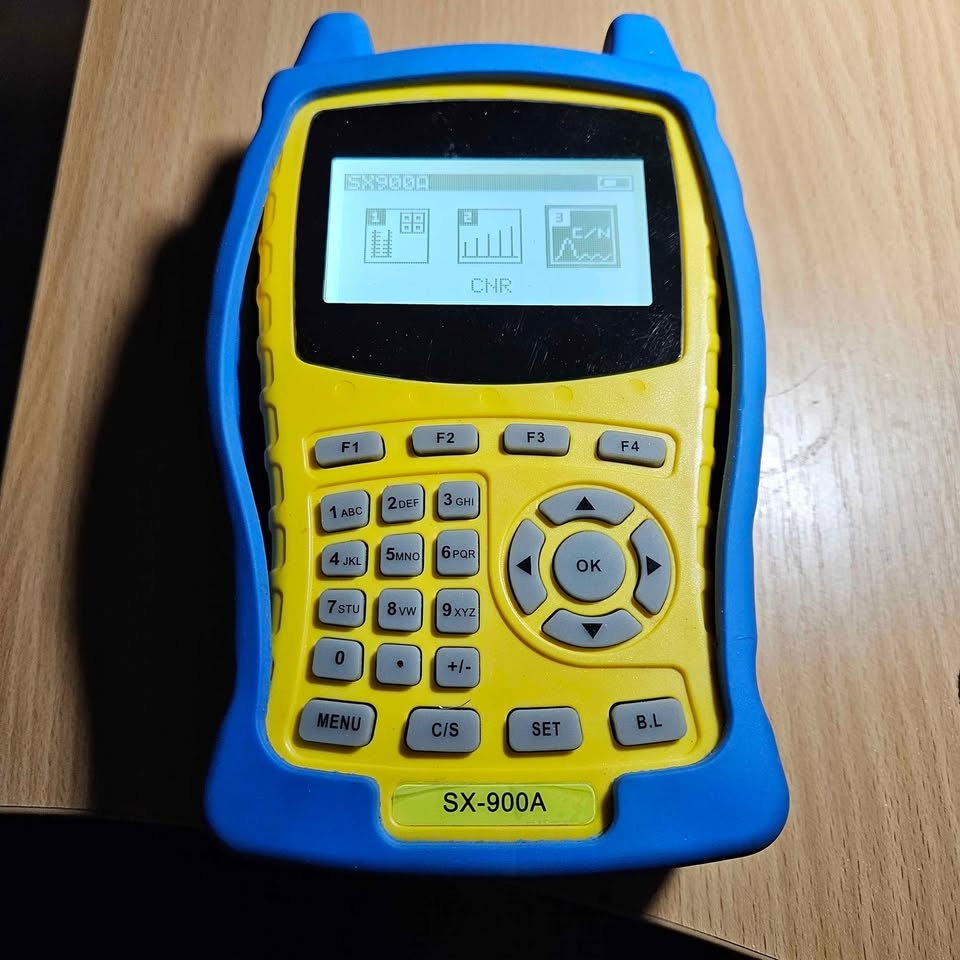

SX-900A merac DVB-C signalu (kablove televizne siete)

Analog Channels Measurement
Frequency Range: 48MHz~870MHz
Channel Range: Customized
Bandwidth: 280KHz
Resolution: 50KHz
RF Level
Input Range: 25~120dBuV
Accuracy: +/-2dB(25+/-5 degree C)
Resolution: 0.1dB
Detection: Peak
C/N
RF Input Range: > 70dBuV
Accuracy: +/-2dB
Tilt
Maximum channels supported: 10
Rail Voltage
Input Range: 0 ~100V AC/DC
Accuracy: +/-2V

Digital Channels Measurement
Standard: DVB-C/ITU-T J. 83 Annex A/C
Demodulation: 16/32/64/128/256QAM
Digital Power Range: 40~110dBuV
Accuracy: +/-2dB
Bandwidth: Adjustable
Symbol Rate: 4~7Ms/s
MER: 19~40dB
BER: 1.0E-3~1.0E-9

Power
Battery: Chargeable Li-on
Adaptor: 110/220VAC
Battery Operation time: > 4 hours (full charged)
Charge Time: 5 hours (Power Off)
