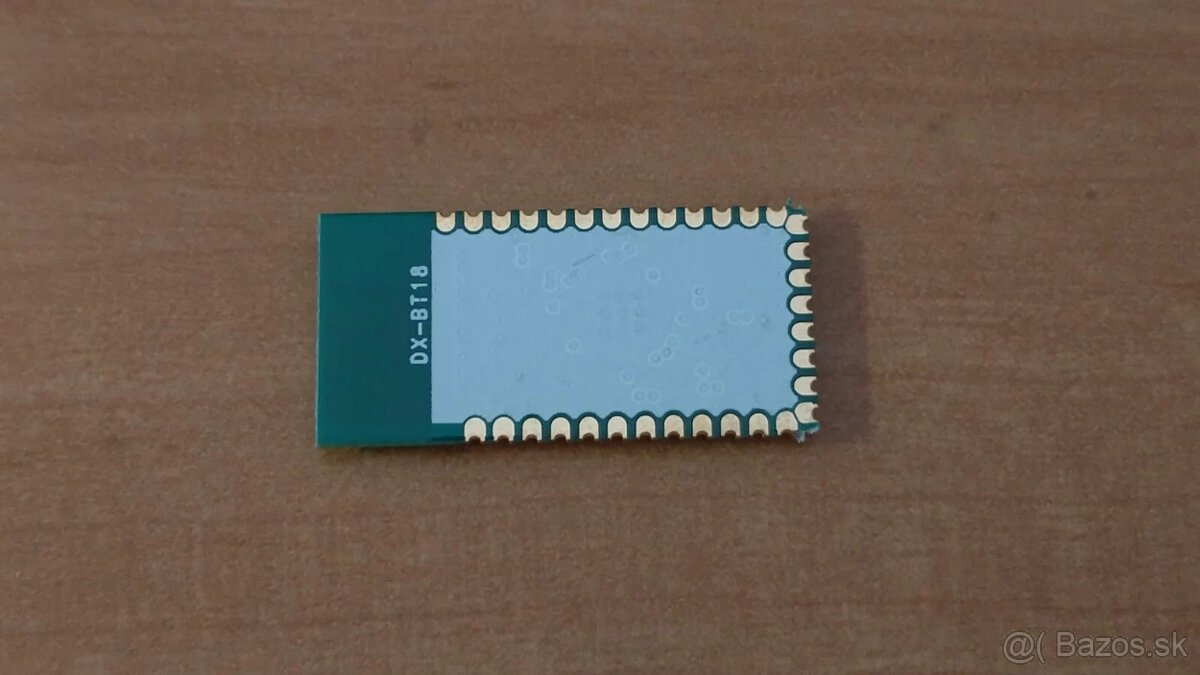

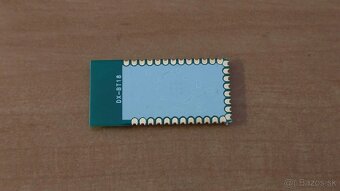

500x DX-BT18 Bluetooth modul
- [28.10. 2025]Zmazať/ Upraviť/ Topovať








Predavam nepouzite elektronicke moduly (500 kusov) pre datovy prenos technologiou Bluetooth DX-BT18, popis nizsie.
Nemam pre ne vyuzitie, zostali nevyuzite po nedokoncenom projekte. Predavam vsetko naraz, nie po kusoch.
Poslem kurierom alebo osobny odber mozny na adrese Jaslovske Bohunice, Paderovska ulica.
Kontakovat ma mozete cez formular pod inzeratom. Inzerat je aktualny do zmazania..
---------------------------
Contents:

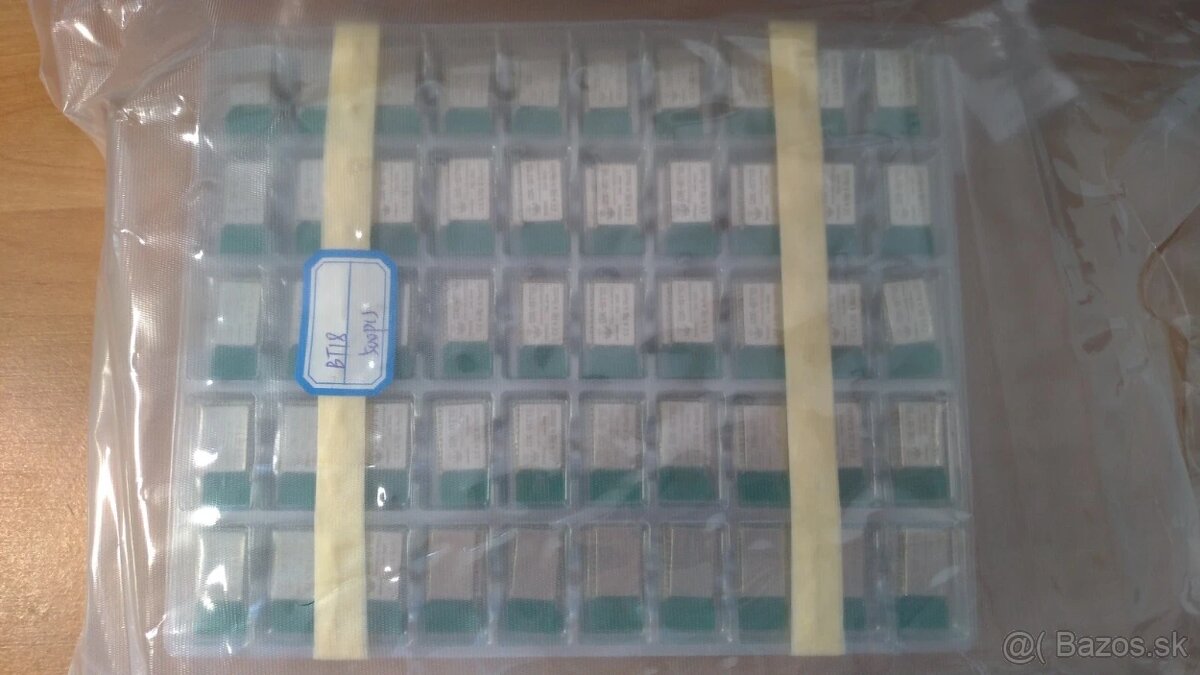

10x plastic trays, each containing 50 units = total 500 units
Description:

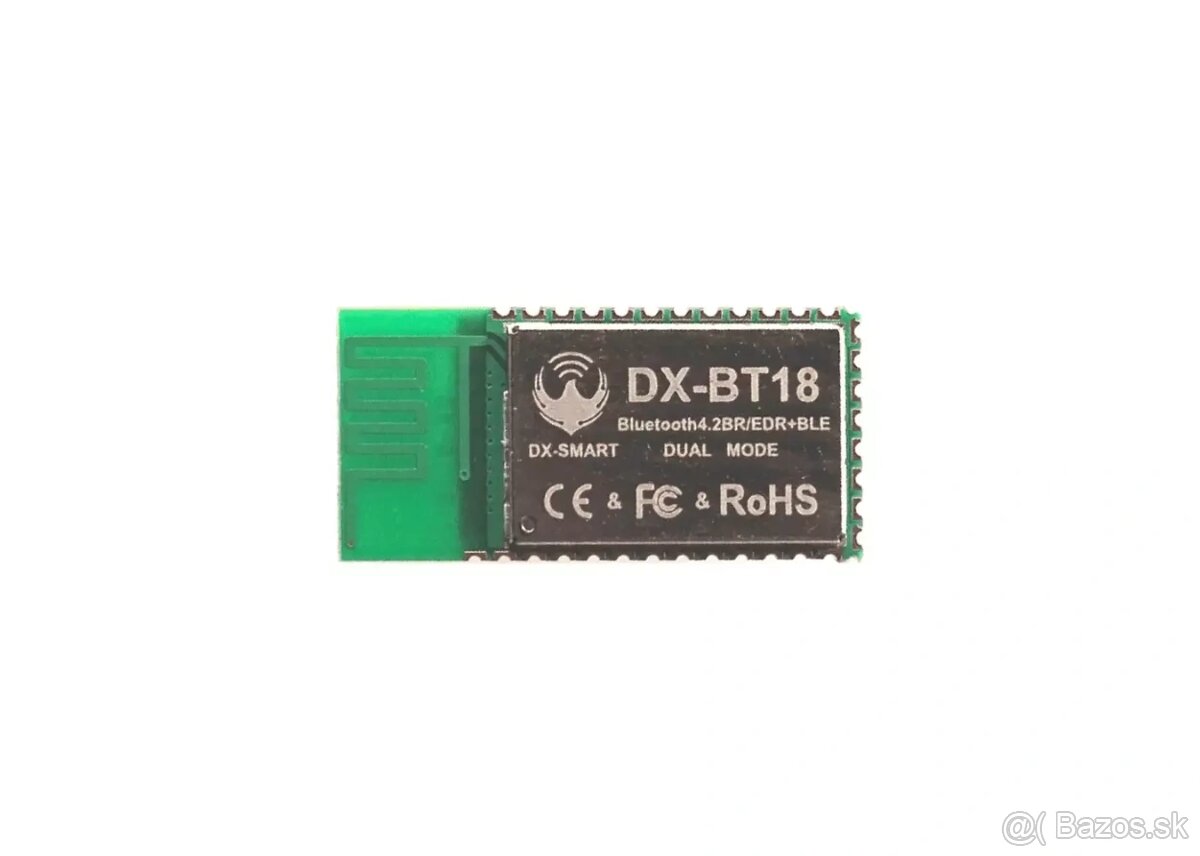

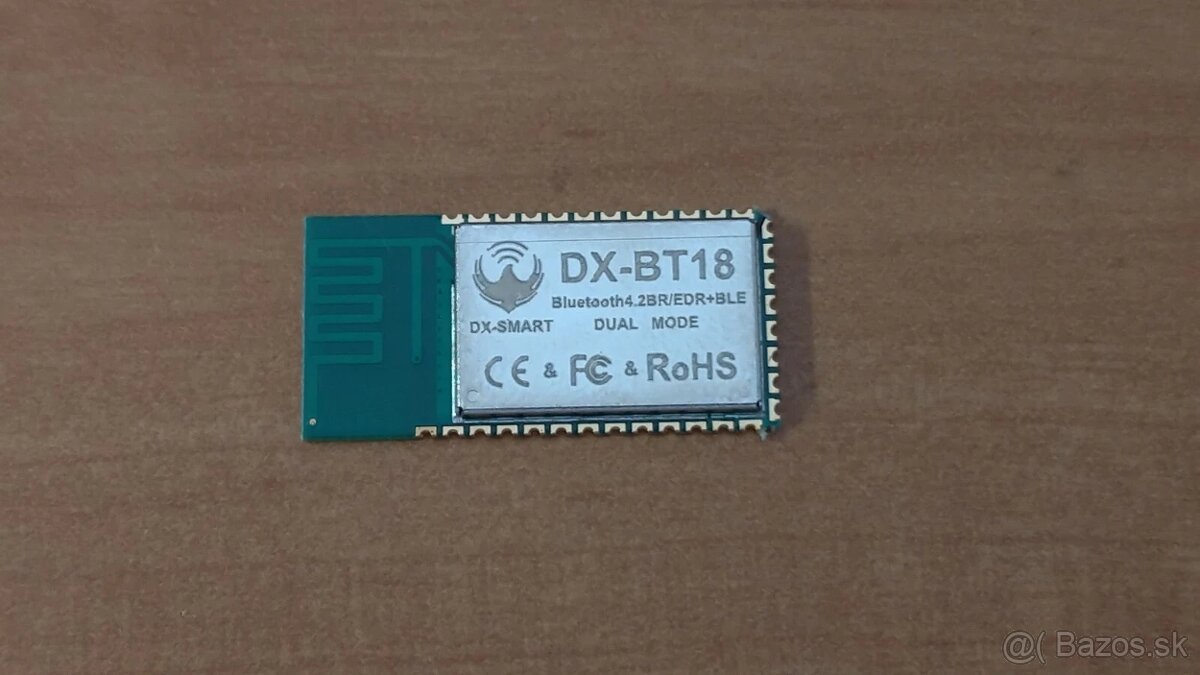

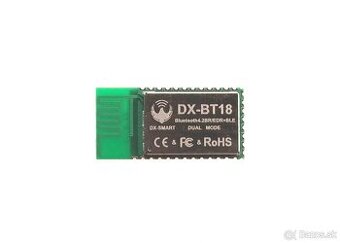

DX-BT18 dual-mode Bluetooth module is a dual-mode Bluetooth module (Dual-Mode) that is specially designed for smart wireless data transmission by Shenzhen DX-SMART Technology Co., Ltd. and follows the Bluetooth 4.2 standard protocol. Supports both BT3.0 Classic and BT4.2 BLE modes.
Module default parameters:
Bluetooth Protocol Bluetooth 4.2 BR/EDR+BLE
Communication Interface UART
Power Supply 3.3V
Physical Dimension 27mm x 13mm x 2.35 mm
Bluetooth Name BT18
Pairing Code 1234 (The SPP agreement is valid)
Serial Port Default Parameters 9600 baud, 8 data bits,1 stop bit, No check, No flow control
Service UUID FFE0
Notify\Write UUID FFE1
Write UUID FFE2
Application area:
DX-BT18 module supports BT3.0 SPP standard protocol, which can be paired with all Bluetooth-enabled desktop computers, notebooks, Android mobile phones and Bluetooth main module to achieve bidirectional data transmission and receiving; DX-BT18 module supports BT4.2 BLE protocol at the same time, can connect directly with iOS device with BLE Bluetooth function, support background program resident operation.
Nemam pre ne vyuzitie, zostali nevyuzite po nedokoncenom projekte. Predavam vsetko naraz, nie po kusoch.
Poslem kurierom alebo osobny odber mozny na adrese Jaslovske Bohunice, Paderovska ulica.
Kontakovat ma mozete cez formular pod inzeratom. Inzerat je aktualny do zmazania..
---------------------------
Contents:
10x plastic trays, each containing 50 units = total 500 units
Description:
DX-BT18 dual-mode Bluetooth module is a dual-mode Bluetooth module (Dual-Mode) that is specially designed for smart wireless data transmission by Shenzhen DX-SMART Technology Co., Ltd. and follows the Bluetooth 4.2 standard protocol. Supports both BT3.0 Classic and BT4.2 BLE modes.
Module default parameters:
Bluetooth Protocol Bluetooth 4.2 BR/EDR+BLE
Communication Interface UART
Power Supply 3.3V
Physical Dimension 27mm x 13mm x 2.35 mm
Bluetooth Name BT18
Pairing Code 1234 (The SPP agreement is valid)
Serial Port Default Parameters 9600 baud, 8 data bits,1 stop bit, No check, No flow control
Service UUID FFE0
Notify\Write UUID FFE1
Write UUID FFE2
Application area:
DX-BT18 module supports BT3.0 SPP standard protocol, which can be paired with all Bluetooth-enabled desktop computers, notebooks, Android mobile phones and Bluetooth main module to achieve bidirectional data transmission and receiving; DX-BT18 module supports BT4.2 BLE protocol at the same time, can connect directly with iOS device with BLE Bluetooth function, support background program resident operation.
|
| |||||||||||||||||||||||||||||||
