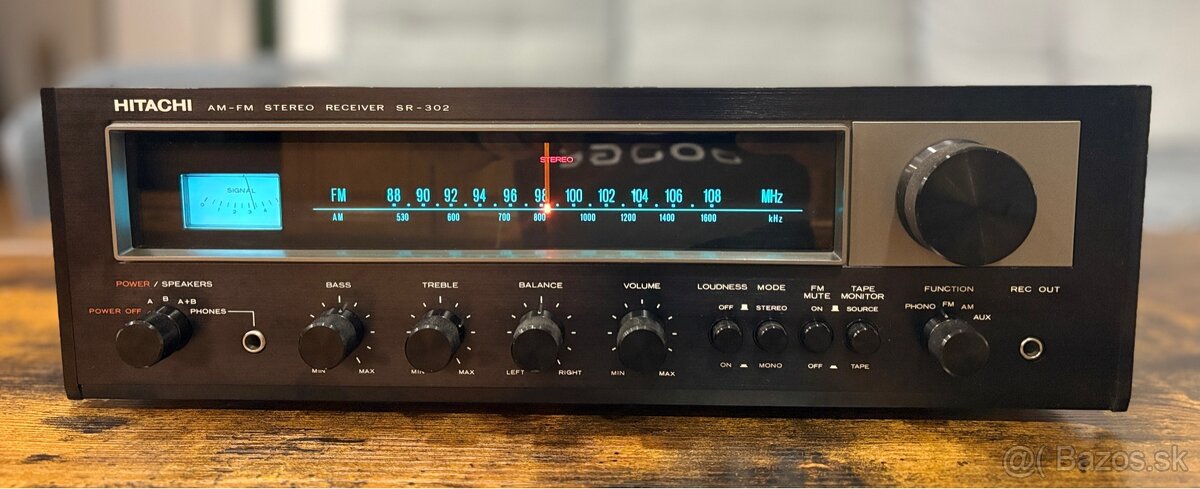

Hitachi SR 302

Predám zachovalý plnofunkčný japonský vintage receiver Hitachi SR 302. Receiver je v pôvodnom stave.

General
• Model: SR-302 (Version SR-302 L with long wave)
• Type: Receiver
Years of manufacture: 1975 - 1977
• Made in: Japan
• Color: Black or Silver
• Remote control:
• Power Consumption:
• Dimensions: 420 × 130 × 350 mm (WxHxD).
• Weight: 7.6 kg
• Original price approx.: 600 DM

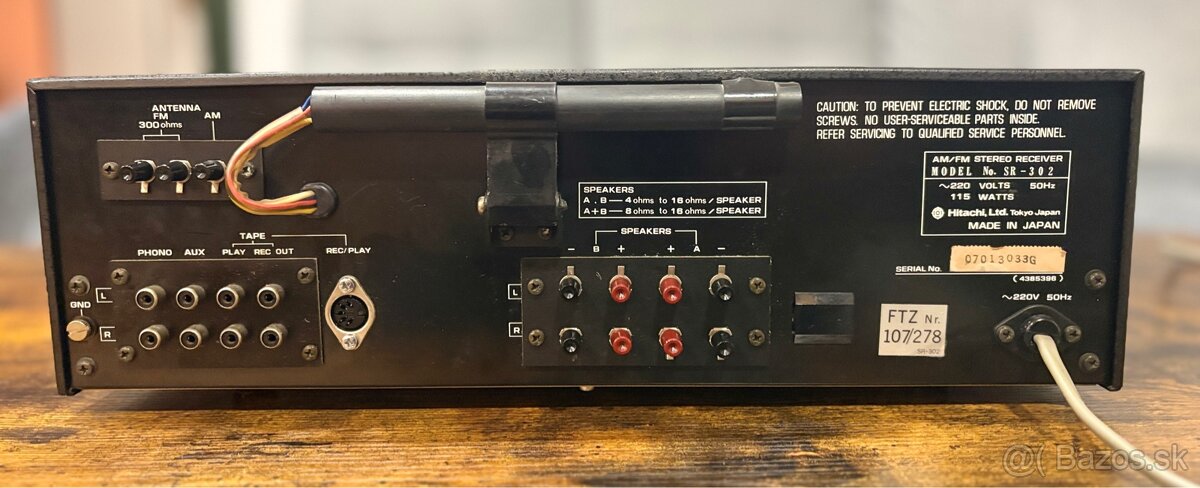

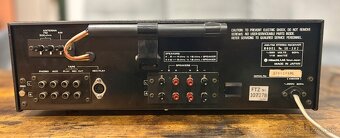

Connections
• Number of inputs:
• Phono MM: 2.5 mV / 47 kOhm, 200 mV max.
AUX: 150 mV / 20 kOhm, 5 V max. Tape Play:
150 mV / 20 kOhm, 5 V max. FM antenna socket: 75 Ohm coaxial VHF / MW antenna socket: 300 Ohm
• Number of outputs:
• Tape Rec: 150 mV
Tape Rec DIN: 40 mV
• • Headphones: 6,3mm jack plug
• 2 pairs of loudspeakers

Technical Data Amplifier
• Continuous power (at distortion)
8 Ohm: 2 x 16 Watt
• 4 Ohm: 2 × 20 Watt
• Dynamic power:
• 8 Ohm:
• 4 Ohm:
• Total harmonic distortion: < 0.5 %
• Attenuation factor: 20
• Frequency response:
• Phono (RIAA): 20 - 30'000 Hz, = 0,3 dB
• High level: 20 - 20'000 Hz, + 0 dB, - 1 dB
• Signal-to-noise ratio:
• Phono MM: 65 dB
High level: 85 dB
• Tone control
• Bass: + 10 dB / 100 Hz
Treble: + 10 dB / 10 kHz
• Loudness: Yes
• High Filter: No
• Low Filter (Subsonic): No
• Mute: No
• Direct/Line-Straight: No

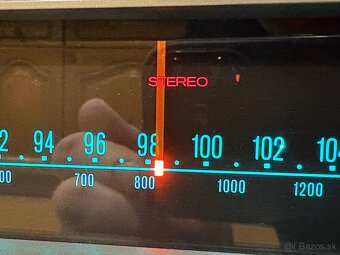

Tuner
• Reception: FM, MW
• Frequencies:
• FM: 87.5-108 MHz
• MW: 516-1605 kHz
• Input sensitivity:
• FM: 1.9 uV
MW: 350 uV Distortion factor:
• • Mono: 0.2 %
Stereo: 0.5
• Frequency response: 30 - 15'000 Hz, + 1 dB
• Signal-to-noise ratio:
• Mono: 70 dB
• Stereo: 65 dB
• Channel separation: 36 dB
• selectivity: > 60 dB
• Co-wave selection: 2.0 dB
• Spurious wave selection:
• Image frequency attenuation: 45 dB
• IF attenuation: > 85 dB
• AM suppression: > 45 dB
• Station memory:
Special Features
• Rec Out Front: 6.3mm jack plug
• FM Muting
Stereo/Mono switchable
.
