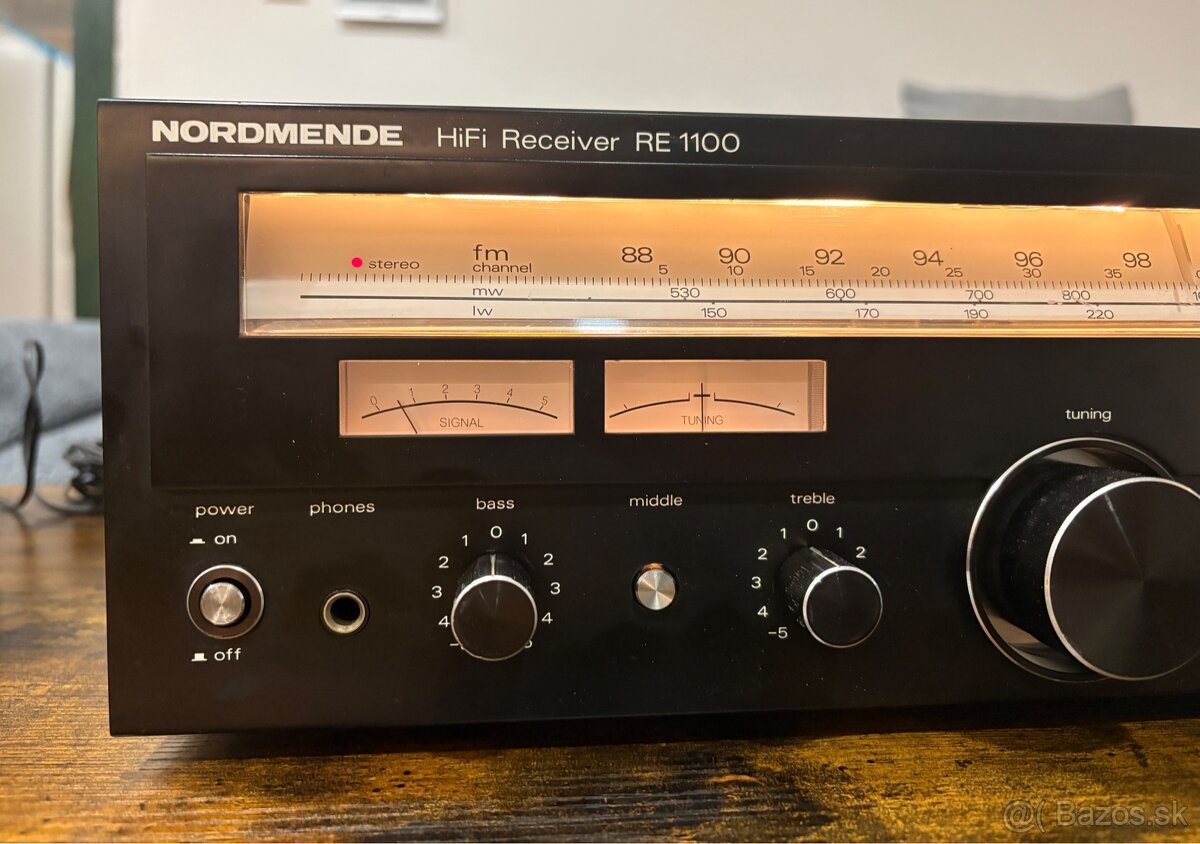

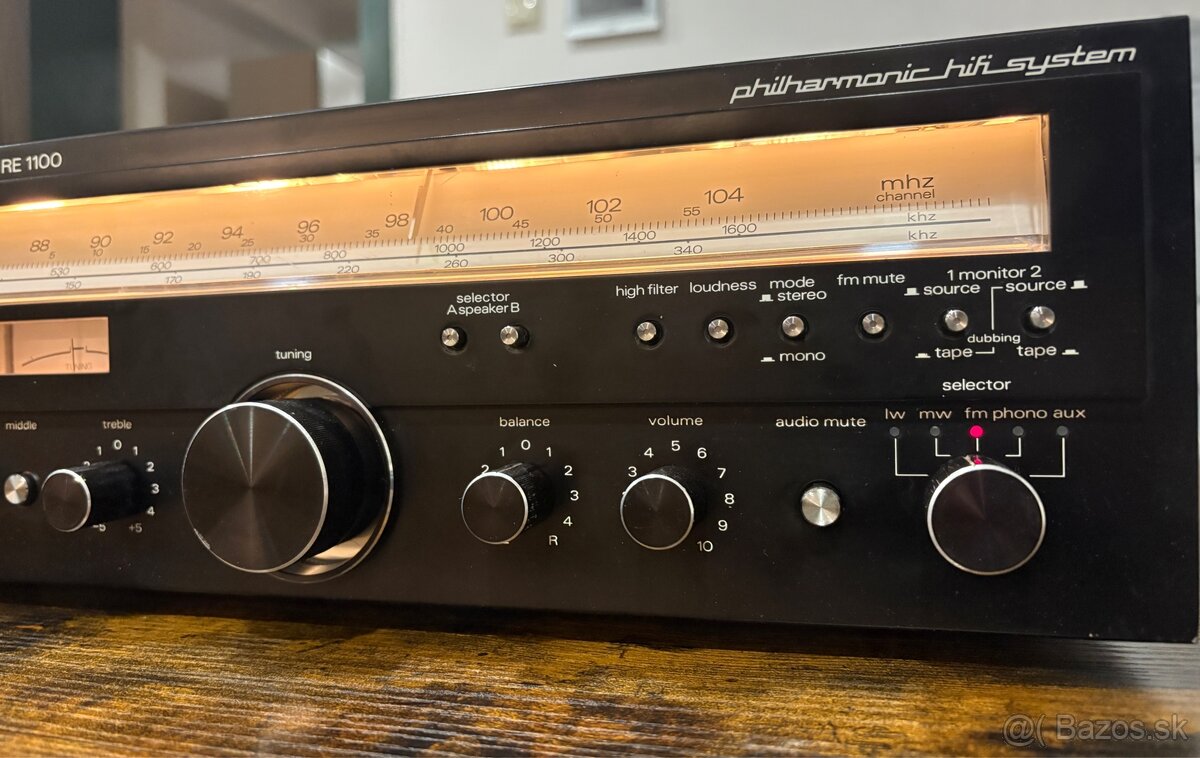

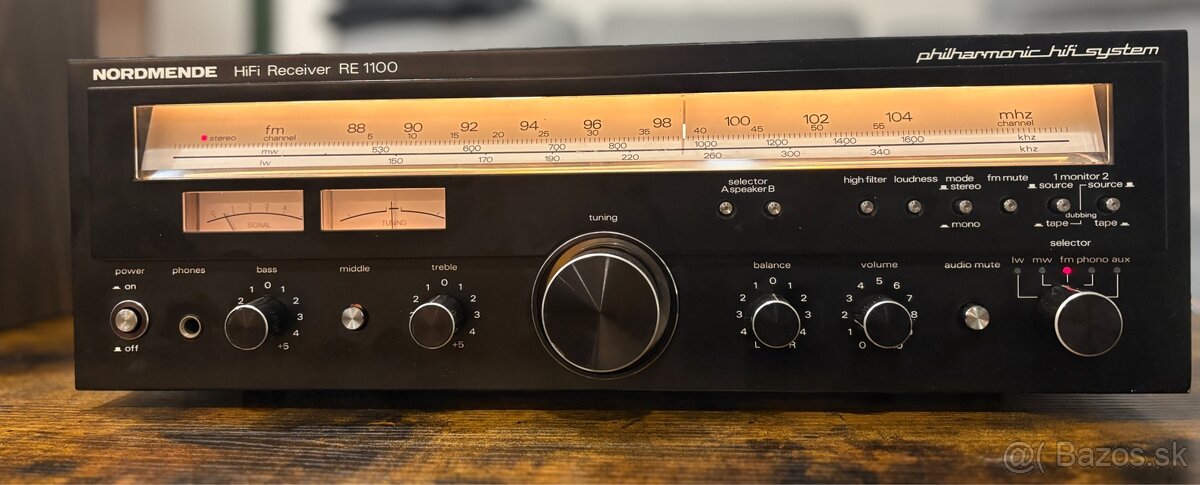

Nordmende RE 1100

Predám zachovalý plnofunkčný vintage receiver Nordmende RE 1100.

Type: Receiver
• Years of manufacture: 1978 - 1981
• Made in: Japan
• Color: Silver, Black
• Remote control: no
• Power consumption: 190 W max.
• Dimensions (WxHxD): 440 x 140 x 290 mm
• Weight: approx. 9 kg
• Original price approx.: 748 DM

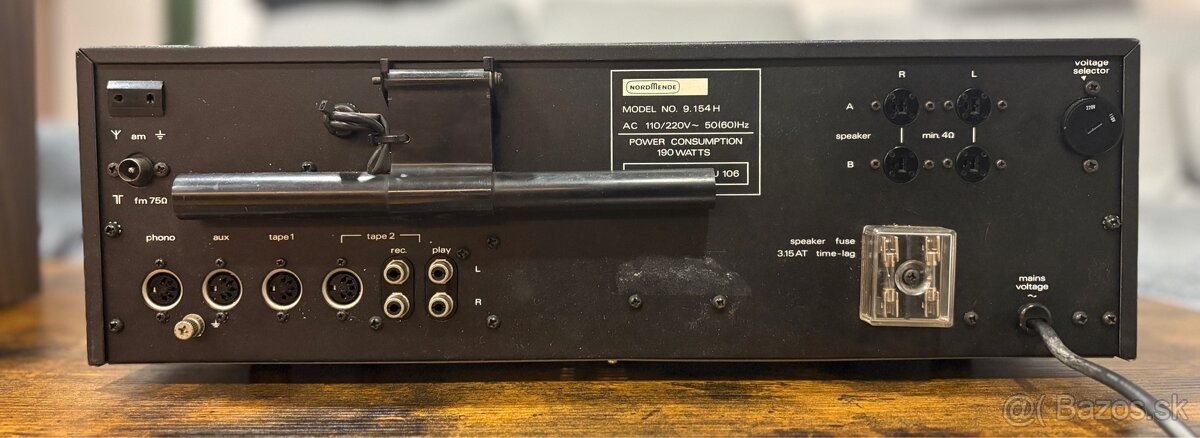

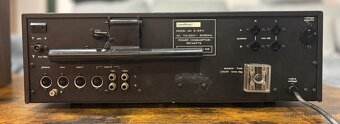

Connections
• Number of inputs:
• Phono MM: 2.5 mV, 50 kOhm
AUX: 150 mV, 50 kOhm
• • Tape Play 1, 2: 150 mV, 50 kOhm
FM antenna: 75 Ohm, 300 Ohm
• • MW antenna: 300 Ohm
• Number of outputs:
• Tape Rec 1, 2: 150 mV
• Headphones (6,3mm jack):
• 2 pairs of speakers

Technical Data
Amplifier
• Continuous power (at distortion).
• 8 Ohm:
• 40hm: 2x 35 W
• Dynamic power
• 8 Ohm:
• 4 0hm: 2x 55 W
• Total harmonic distortion: 0.02 %
• Attenuation factor: 60 at 8 Ohm
• Frequency response: 20 - 20'000 Hz
• Signal to noise ratio:
• Phono MM: 65 dB
Line: 80 dB
• Tone control:
• Bass: + 10 dB at 100 Hz
• Mid: + 5 dB at 1 kHz
Treble: + 10 dB at 10 kHz
• Loudness: + 10 dB at 100 Hz
• High Filter: yes
• Low Filter (Subsonic): yes
• Mute: yes

Tuner
• Reception: FM, MW, LW
• Frequencies:
• FM: 87.5 - 108 MHz
MW: 510 - 1650 kHz LW: 145 - 345 kHz
• Input sensitivity:
• VHF: 1.8 uV
• MW: 20 uV
• Frequency response: 30 - 15'000 Hz
• Distortion factor:
• Mono: 0.09 %
• Stereo: 0.15 %
• Signal-to-noise ratio:
• FM:
• Mono: 74 dB
• Stereo: 70 dB
• MW: 50 dB
• Channel separation: 45 dB
• selectivity: 55 dB
• Co-wave selection: 1.0 dB
• Spurious wave selection: 90 dB
• IF attenuation: 80 dB
• IF attenuation: 90 dB
• MW suppression: 55 dB
• Station memory:
Special Features
• Tape dubbing
• Audio muting
• FM muting
• Mono / Stereo switchable
.
