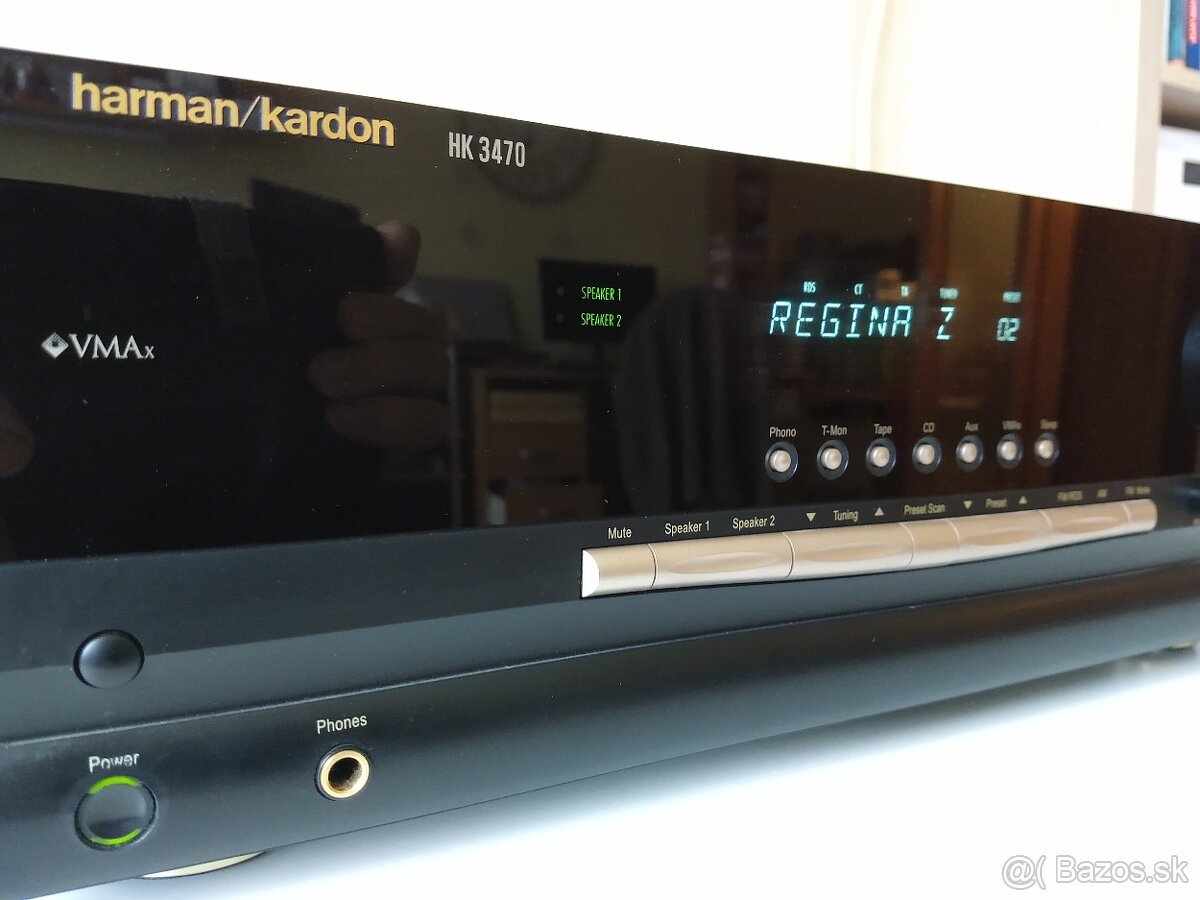

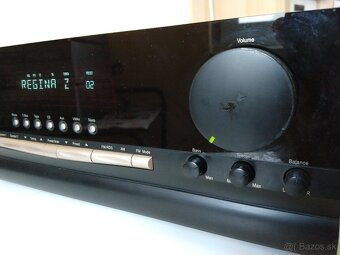

Harman Kardon HK3470-Rezervácia

Zariadenie funkčné,skontrolované,vyčistené,a podobne.... Ak je záujem,treba volať:+421 948/228 123
Audio Section
Stereo Mode
Continuous Average Power (FTC)
100 Watts per channel,20Hz–20kHz
@ < 0.07% THD,both channels driven into 8 ohms
135 Watts per channel,20Hz–20kHz
@ < 0.2% THD,both channels driven into 4 ohms
Input Sensitivity/Impedance
Linear (High Level) 200mV/47kohms
Signal-to-Noise Ratio (IHF-A) 95dB
Frequency Response
@ 1W (+0dB,–3dB) 10Hz–110kHz
High Instantaneous
Current Capability (HCC) ±45 Amps
Transient Intermodulation
Distortion (TIM) Unmeasurable
Rise Time 16µsec
Slew Rate 40V/µsec
FM Tuner Section
Frequency Range 87.5–108MHz
Usable Sensitivity IHF 1.12 µV/13.5dBf
Signal-to-Noise Ratio Mono/Stereo 73/72dB
Distortion Mono/Stereo 0.3/0.4%
Stereo Separation 40dB @ 1kHz
Selectivity ±400kHz,65dB
Image Rejection >80dB
IF Rejection >100dB
Tuner Output Level 1kHz,±100kHz Dev 500mV
AM Tuner Section
Frequency Range 520–1710kHz
Signal-to-Noise Ratio >40dB
Usable Sensitivity Loop 500µV/M
Distortion 1kHz,50% Mod 0.8%
Selectivity ±10kHz,>25dB
General
Power Requirement AC 120V/60Hz
Power Consumption 72W idle,332W maximum
(both channels driven)
Dimension (Max)
Width 17.4 inches (442mm)
Height 6.1 inches (156mm)
Depth 16.3 inches (415mm)
Weight 26.8 lb (12.1kg)
