Nordmende RE 1400

Predám zachovalý plnofunkčný receiver Nordmende RE 1400 z rady Philharmonic Hifi System.

• Manufacturer: Nordmende
• Model: RE-1400
Type: Receiver
• Years of manufacture: 1980 - 1982
• Manufactured in:
• Color: Silver
• Remote control: no

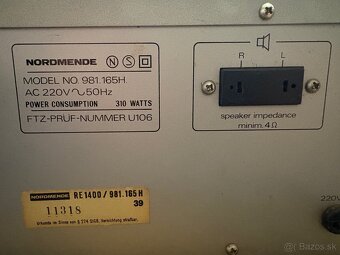

• Power consumption: 310 W max.
• Dimensions (WxHxD): 440 x 132 x 373 mm
• Weight: 8 kg
• Original price approx.: 900 DM
Connections
• Number of inputs:
• Phono MM: 2.5 mV, 50 kOhm
AUX: 150 mV, 50 kOhm
• • Tape Play: 150 mV, 50 kOhm
FM antenna: 75 Ohm, 300 Ohm
• • MW antenna: 300 Ohm
• Number of outputs:
• Tape Rec: 150 mV
• Headphones (6.3mm jack):
• 1 pair of speakers

Amplifier
• Continuous power (at distortion).
• 8 Ohm:
• 4 Ohm: 2x 40 W
• Dynamic power
• 8 Ohm:
• 4 Ohm: 2x 70 W
• Total harmonic distortion: 0,02 %
• Attenuation factor: 60 at 8 Ohm
• Frequency response: 20 - 20'000 Hz
• Signal to noise ratio:
• Phono MM: 65 dB
Line: 80 dB
• Tone control:
• Bass: + 10 dB at 100 Hz
Treble: + 10 dB at 10 kHz
• Loudness: + 10 dB at 100 Hz
• High Filter: yes
• Low Filter (Subsonic): -
• Mute:

Tuner
• Reception: FM, MW
• Frequencies:
• FM: 87.5 - 108 MHz
• MW: 530 - 1610 kHz
• Input sensitivity:
• FM: 1.8 uV
• MW: 20 uV
• Frequency response: 30 - 15'000 Hz
• Distortion factor:
• Mono: 0.09 %
• Stereo: 0.15 %
• Signal-to-noise ratio:
° FM:
• Mono: 74 dB
• Stereo: 70 dB
• MW: 50 dB
• Channel separation: 45 dB
• selectivity: 55 dB
• Co-wave selection: 1.0 dB
• Spurious wave selection: 90 dB
• IF attenuation: 80 dB
• IF attenuation: 90 dB
• MW suppression: 55 dB
• Station memory: yes, 6 + 1 fixed stations

Special Features

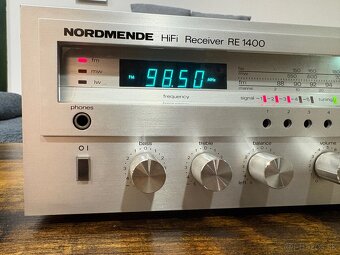

• 5-digit digital frequency display
• 6 + 1 preset station memory
LED display for input level LED display for VHF
center
• AFC flter
• FM Muting
• Mono / Stereo switchable
.
.
