Pioneer A616

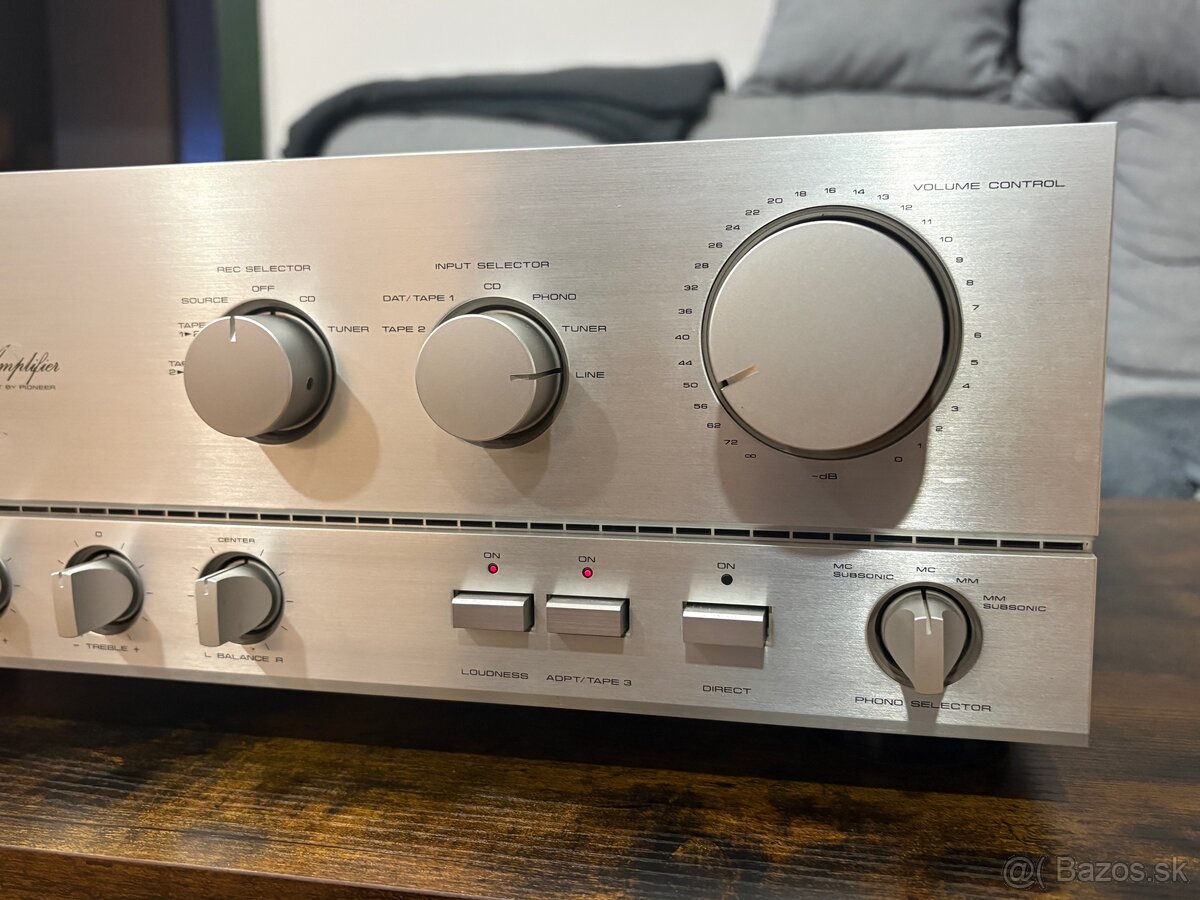

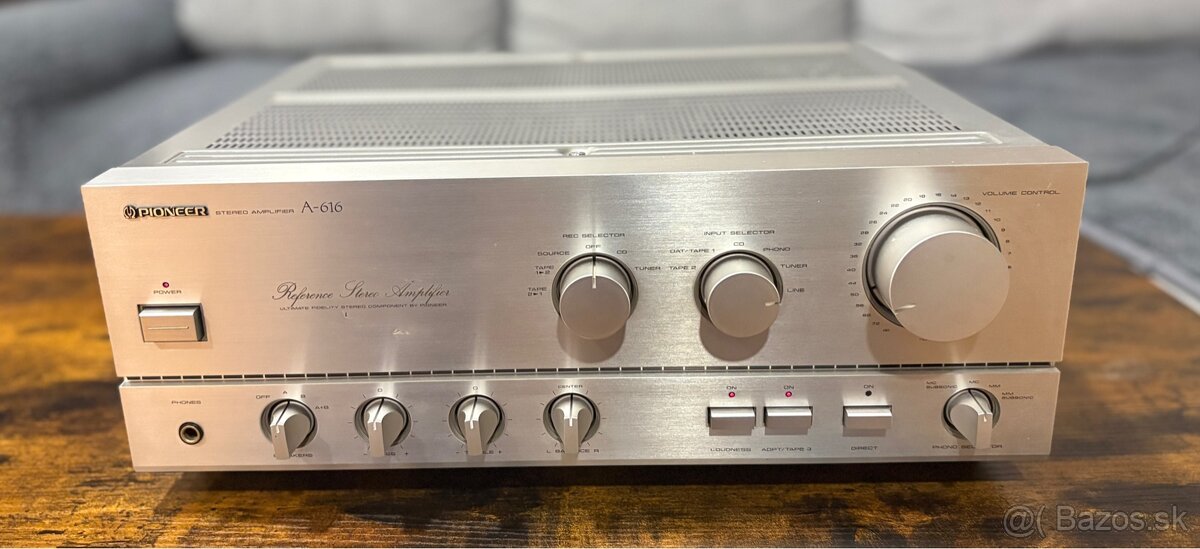

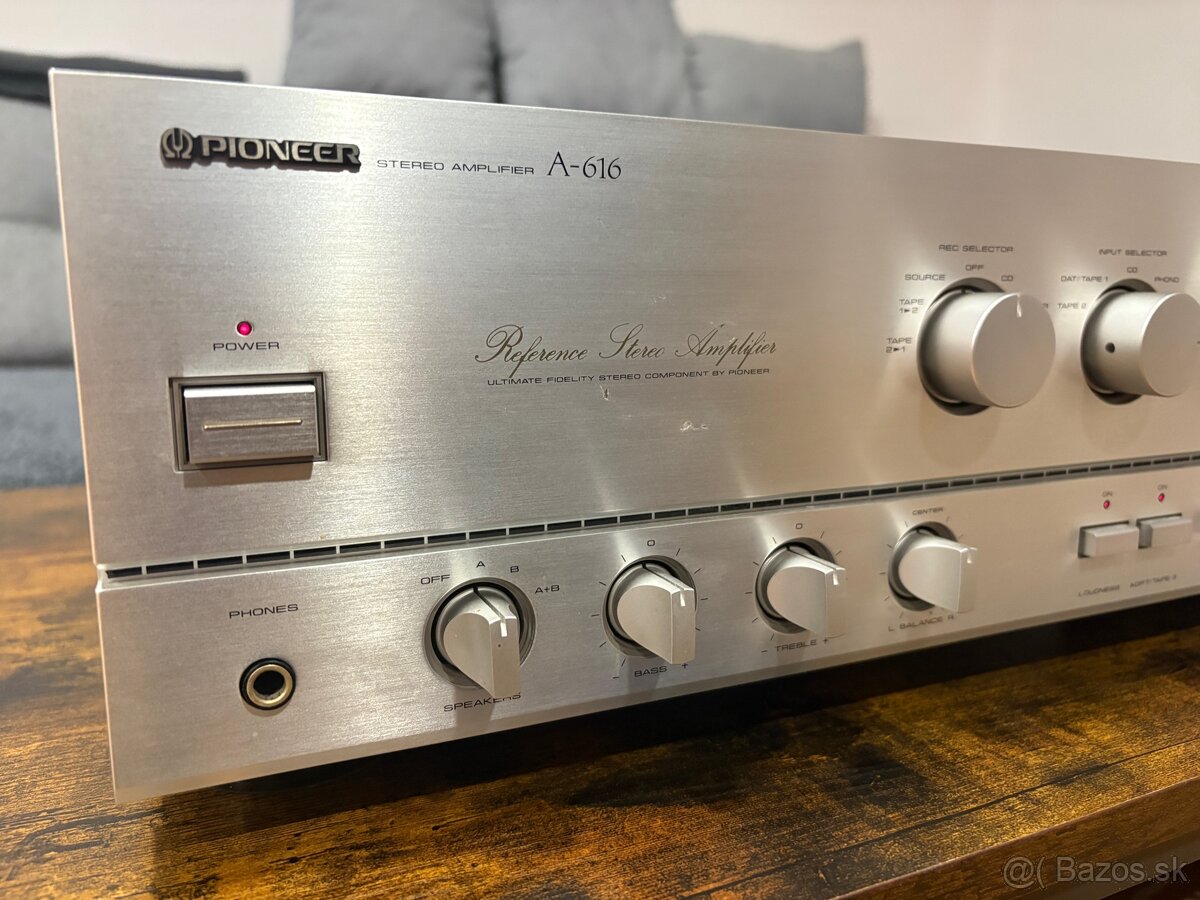

Predám plnofunkčný vintage strieborný zosilňovač Pioneer. Na prednom paneli dva malé ťukance a maly škrabanec (vid foto)

Year built: 1987
Made in: Japan
Color: black, silver (A-616-G)
Type: Analog
Remote control: no
Power consumption: 650 W
Dimensions: 420 x 162 x 435 mm (WxHxD)
Weight: 14 kg
Original price approx.: 1000 DM

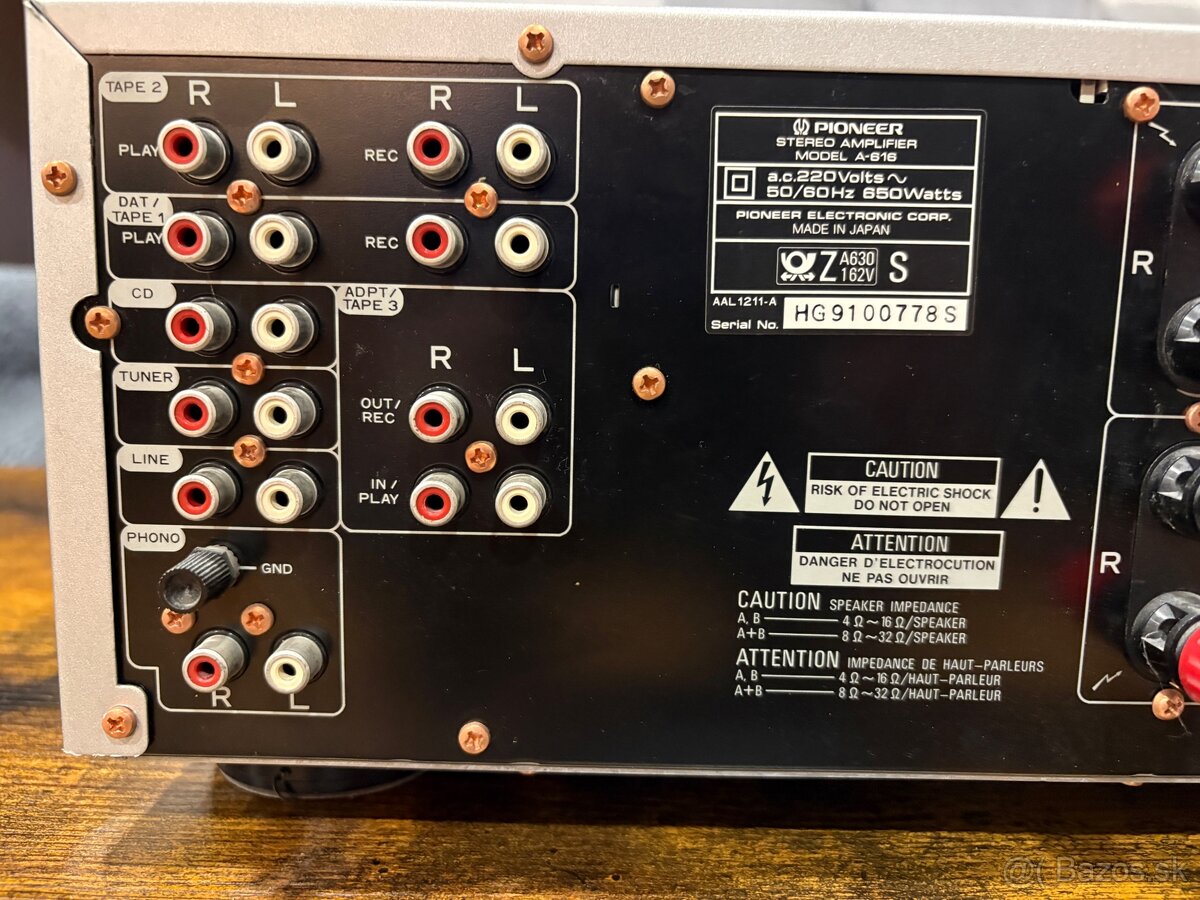

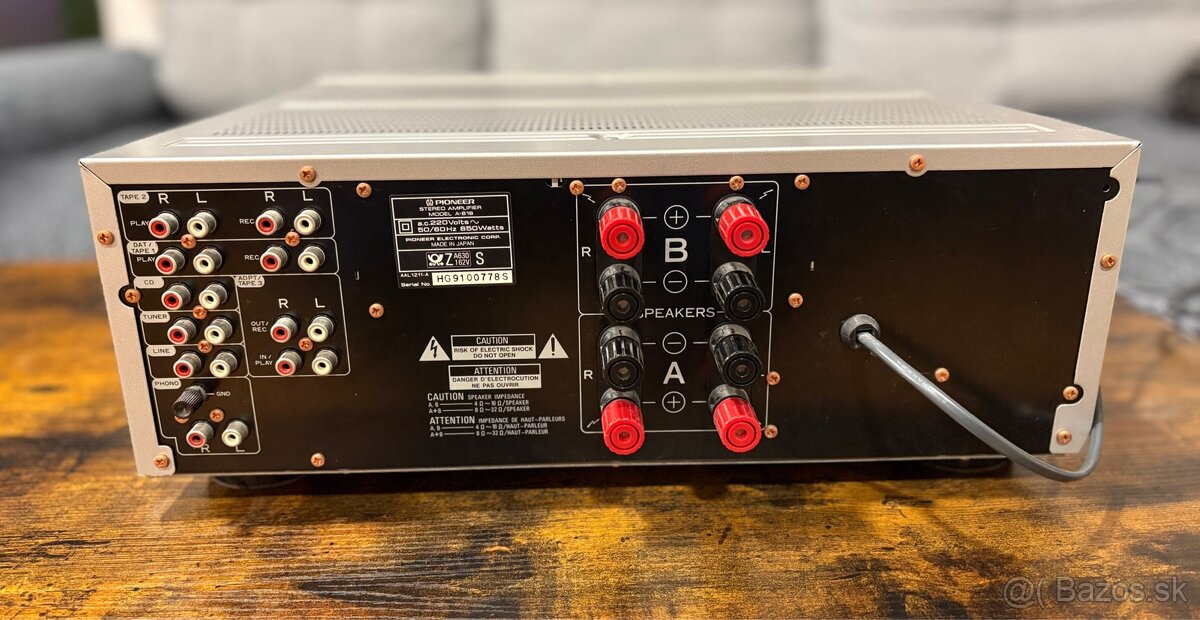

Connections

Number of inputs:
Phono (MM/MC selectable): 2.5 mV / 50 kOhm (MM), 0.2 mV / 100 kOhm (MC).
CD, Tuner, Line, 3x Tape In: 150 mV / 50 kOhm.
Number of outputs:
3x Tape Out: 150 mV / 2.2 kOhm.
Headphones (6.3 mm jack, front)

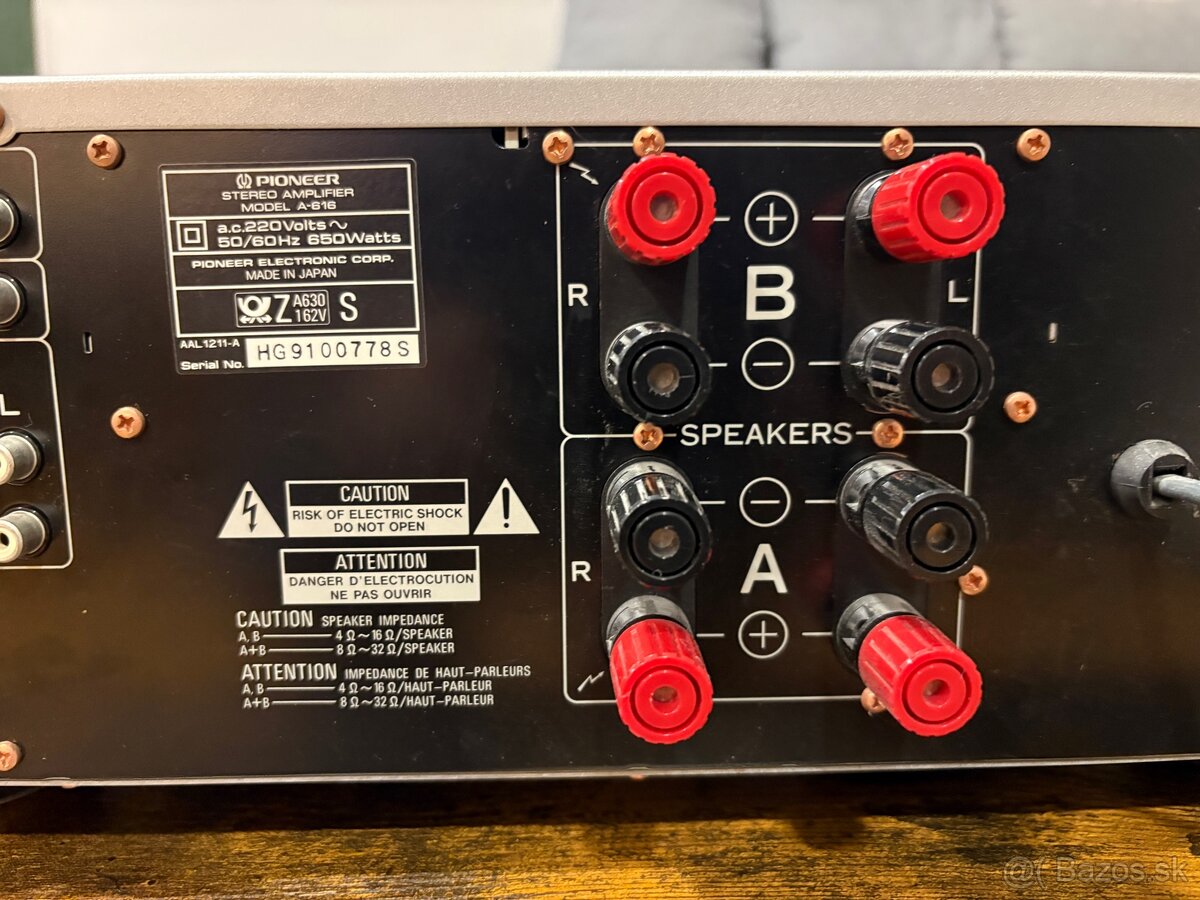

2 pairs of loudspeakers

Technical Data

Continuous power
8 Ohm: 70 W (0.005%)
4 Ohm: 95 W (0.008%)

Dynamic power
8 Ohm: 2x 85 W
4 Ohm: 2x 130 W
Total harmonic distortion: 0.005% (20-20,000 Hz, 70 W, 8 Ohm)
Attenuation factor: 200 / 70 (8 Ohm, 1 kHz / 20-20,000 Hz)
Frequency response:
Phono MM: 20 - 20,000 Hz (±0.2 dB).
Phono MC: 20 - 20,000 Hz (±0.3 dB)

High level: 1 - 150,000 Hz (+0/-3 dB)
Signal-to-noise ratio:
IHF (short-circuited, A-weighted).
Phono MM/MC: 95 dB / 77 dB
High level: 108 dB
DIN (continuous power/50 mW)
Phono MM: 74 dB / 65 dB
High level: 92 dB / 66 dB
Stereo channel separation:
Tone control:
Bass: yes, ±8 dB (100 Hz)
Treble: yes, ±8 dB (10 kHz)

Loudness: yes, +5 dB (100 Hz), +3 dB (10 kHz) (at -40 dB volume)
High Filter: no
Low Filter (Subsonic): yes, 7 Hz (-12 dB/oct)
Mute: no
Direct/Line-Straight: yes
.
