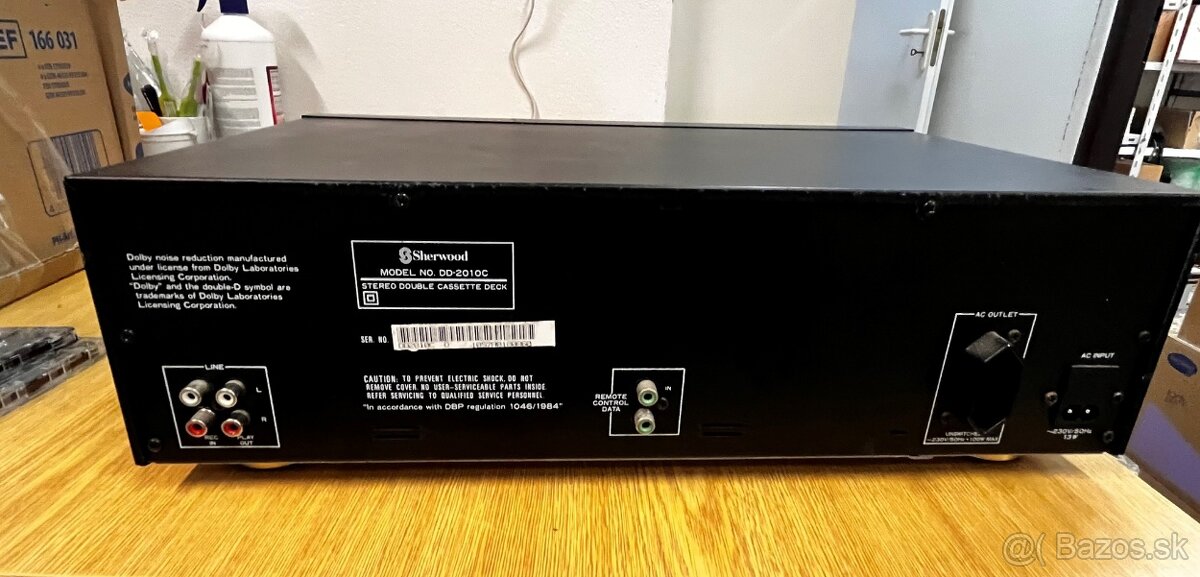

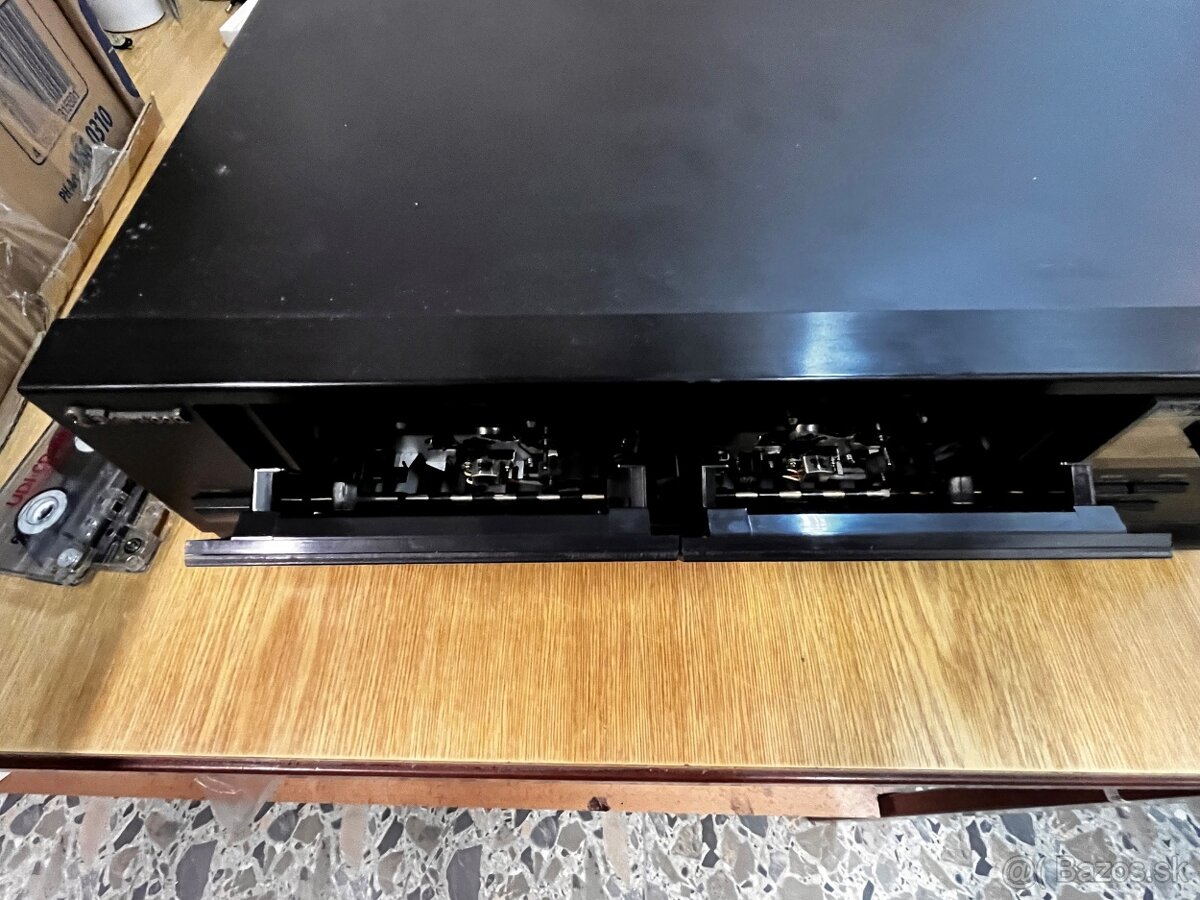

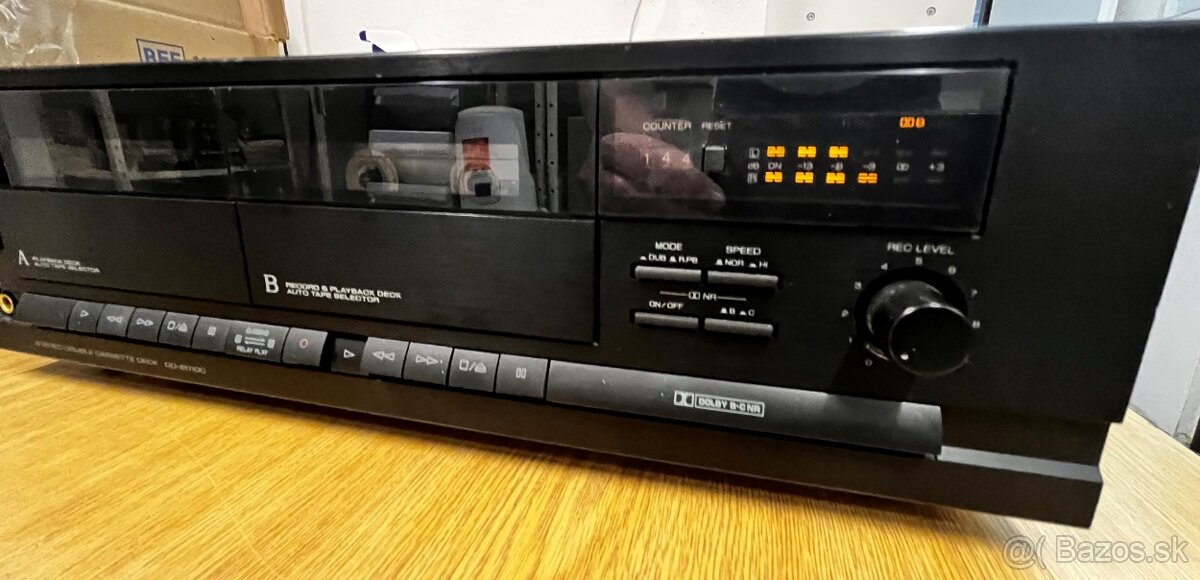

Sherwood DD-2010C Deck

Kazetový deck Sherwood DD-2010C. Funkčný, zachovalý stav.

Manufacturer: Sherwood
Model: DD-2010 C
Type: Double cassette tape deck
Years of manufacture: 1990 - 1993
Made in: Japan
Color: Black
Remote control:
Power Consumption:
Dimensions: 440 x 125 x 245 mm (WxHxD).
Weight:
Original price approx.: 450 DM

Connections

Inputs:
Microphone: 0.4 mV, 4 kOhm
Line In: 100 mV, 47 kOhm

Outputs:
Line Out: 500 mV, 1.2 kOhm
Headphones: 8 Ohm (6.3 mm jack)

Technical Data

Drive:
Motors: 2
sound heads: 2
Synchronization fluctuation: 0.15 % DIN
Distortion factor:
Channel separation: 40 dB
Crosstalk attenuation: 70 dB
Tape type switching: I, II, IV
Frequency response:
Normal: 20 - 16'500 Hz
Chrome: 20 - 17'500 Hz
Metal: 20 - 18'500 Hz

Signal-to-noise ratio:
Dolby off: 65 dB
Dolby C on: 74 dB
Dolby: B, C
Auto Reverse:
Premagnetization frequency: 105 kHz

Special features:

Display 2x 7 LED
High-speed dubbing with synchronous start
