Receiver

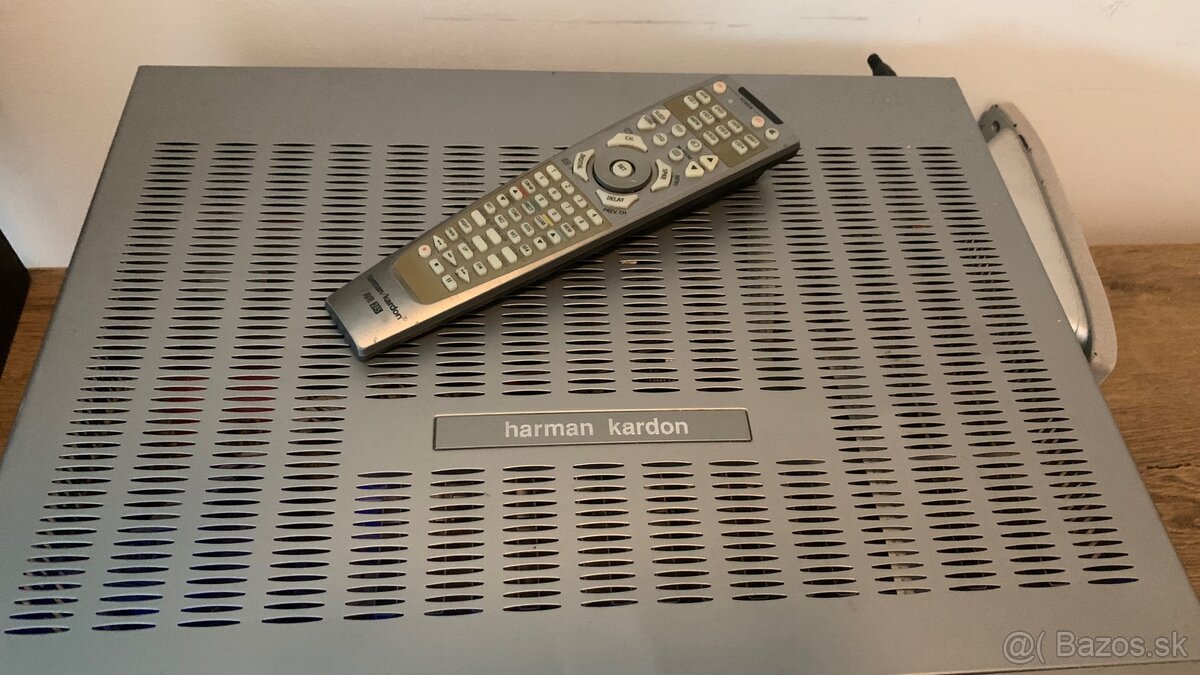

Harman Kardon AVR 245 7.1 AV receiver
* Power consumption: 118 watts (idle), max. 890 watts (7 channel operation) according to hifi-regler.de; 65 W (idle), max. 540 W (7 channel operation) according to the manual
Dimensions: 440 x 168 x 381 mm (WxHxD)
* Weight: 13,6 kg
* Original price approx.: 699 €

Connections

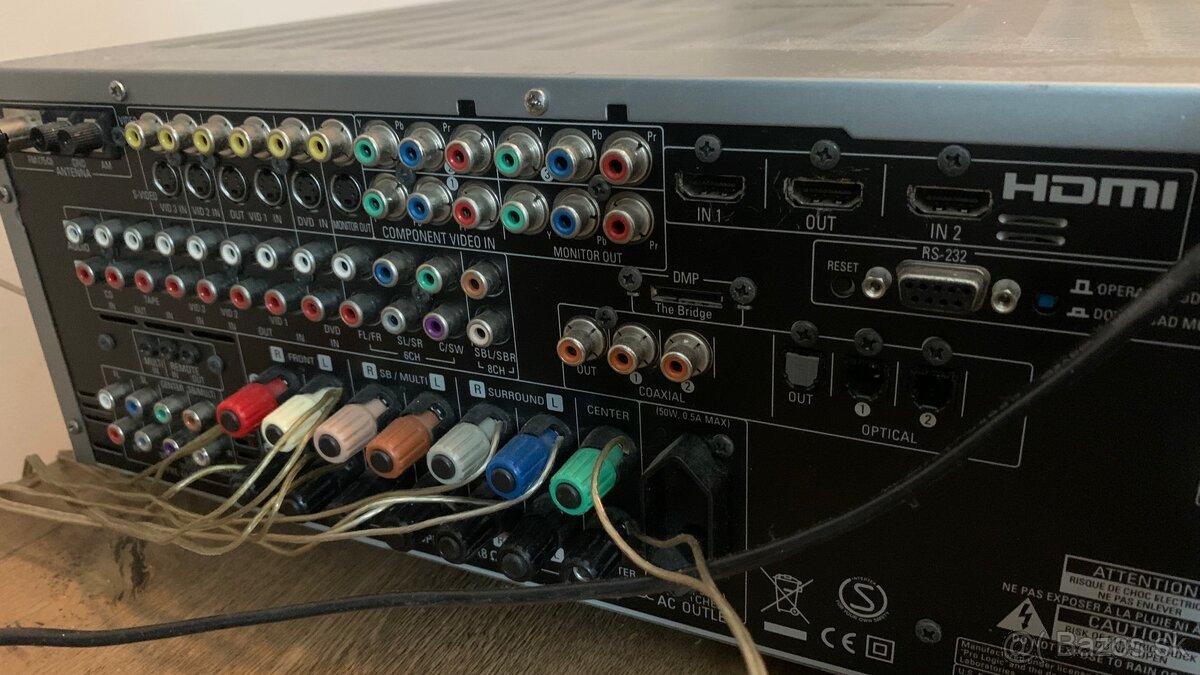

Rear panel:
* MW/UKW antenna connector
* Tape In/Out (Cinch)
DVD Audio & Video In (Cinch)
* CD In (Cinch)
3x Video In (#1,#2,#3 - Cinch)
* Video Out (#1) (Cinch)
* Audio - Vid (#1) In/Out (Cinch)
* 2* Audio Out (#2,#3)
* Monitor Out (RCA)
* Component Video In (RCA)
* 7.1 Channel Direct Input (RCA)
* 7.1 Preamplifier/Multiroom Outputs (incl. Subwoofer (Pre-Out), RCA)
* Bridge Connector DMP (for Apple iPod)
* 2x optical digital input / 1x output
2x coaxial digital input / 1x output
* Multi-Room Remote In
* Remote In/Out
* 1x RS-232
* 7 speaker outputs (screwed)

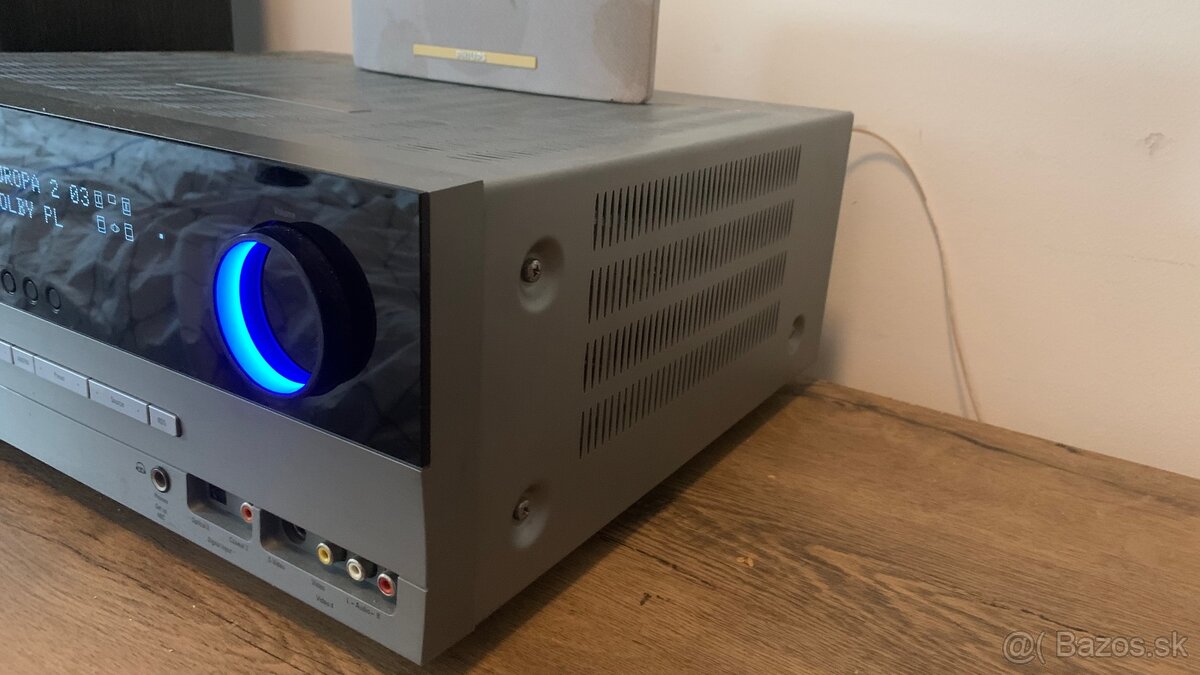

Front Panel:
* Headphone jack (jack 6.35mm stereo)
* 1x optical digital input (#3)
* 1x coaxial digital input (#3)
* Audio/Video inputs (incl. S-Video) (#4)

Specifications
* Stereo mode sine wave output power (FTC): 65 watts per channel, 20 Hz - 20 kHz, at < 0.07% total harmonic distortion (THD), both channels into 8 ohms.
7 Channel Surround Mode Sine Wave Output Power (FTC): 50 watts per channel, at < 0.07% THD, 20 Hz - 20 kHz, into 8 ohms
* Input Sensitivity/Impedance: High Level 200 mV / 47 kOhm
* Signal-to-noise ratio (IHF-A) 100 dB
* Surround channel separation: Analogue decoding (Pro Logic etc.) 40 dB; Dolby Digital (AC-3) 55 dB; DTS 55 dB
* Frequency Response 10 Hz - 130 kHz at 1 Watt (+0 dB, -3 dB)
* High Current Capability (HCC) ±35 A.
* slew rate 16 μsec; slew rate 40 V / μsec1
* Supported audio formats: Dolby® ProLogic®, Dolby® ProLogic® II, Dolby® Digital, DTS®.
* FM tuner / AM tuner
* Speaker Calibration via EzSet+ Function
* Cirrus Logic CS49500 Series DSP Processors
