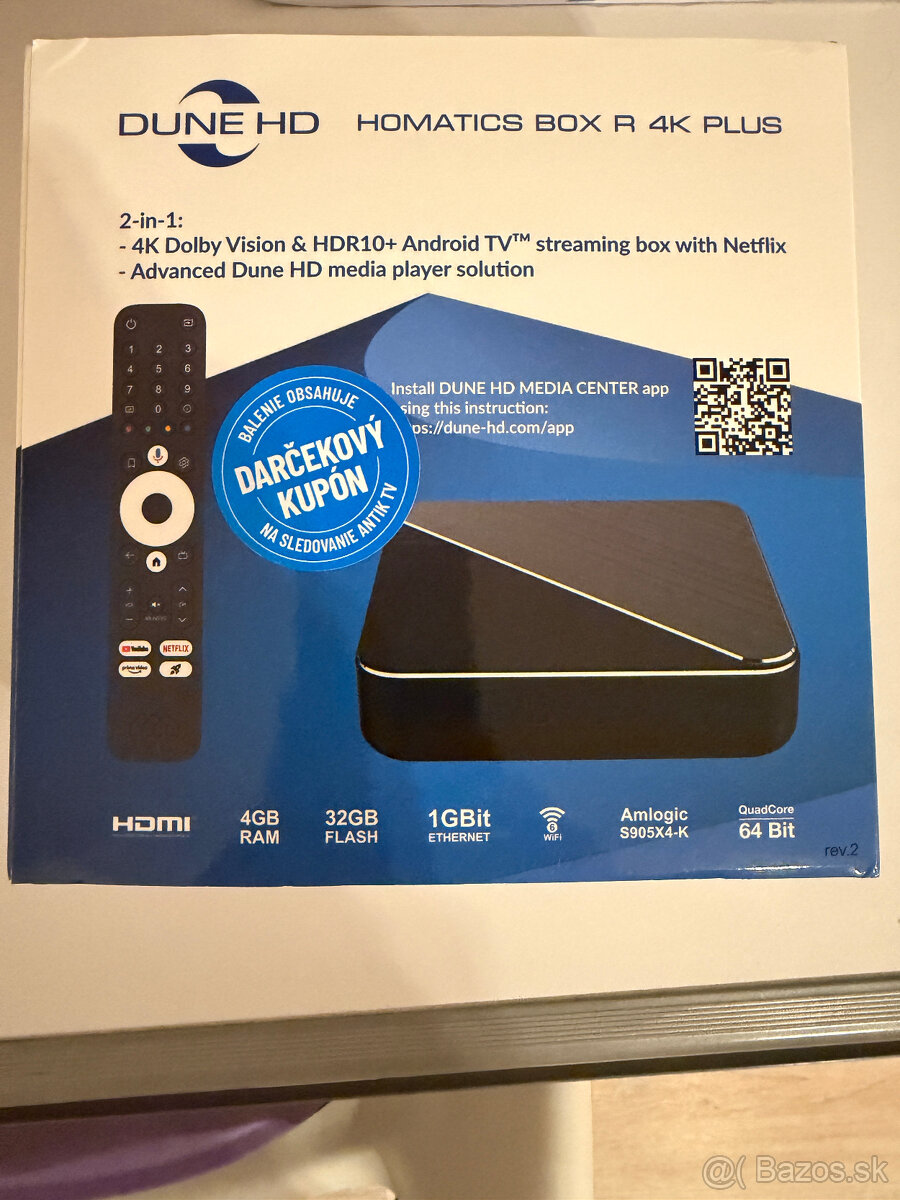

Dune HD Homatics Box R 4K Plus

Media processor: Amlogic S905X4-K with Dolby Vision, Dolby Atmos, DTS licenses

CPU: ARM Cortex A55 4-core

Operating memory: 4 GB

Flash memory: 32 GB

Ethernet: 10/100/1000 Mbit/s

Wi-Fi: 802.11b/g/n/ac/ax (Wi-Fi 6), Dual Band 2.4+5 GHz, 2T2R

Bluetooth: 5.0

USB ports: 1x USB 3.0 + 1x USB 2.0

HDMI output: HDMI 2.1 up to 4Kp60 HDR / HDR10+ / Dolby Vision, HDCP 2.2

Analog A/V output: Absent in new batches (May/2023 and later), was present only in old batches: 3.5mm minijack (composite video + stereo audio)

S/PDIF output: Optical S/PDIF

Reserved port (rear): For potential extensions (DVB-T/T2/C tuner)

Reserved port (bottom): Present only in new batches (May/2023 and later), was absent in old batches: For potential extensions (Smart Speaker)

Power input: 12V DC IN (1.5A)

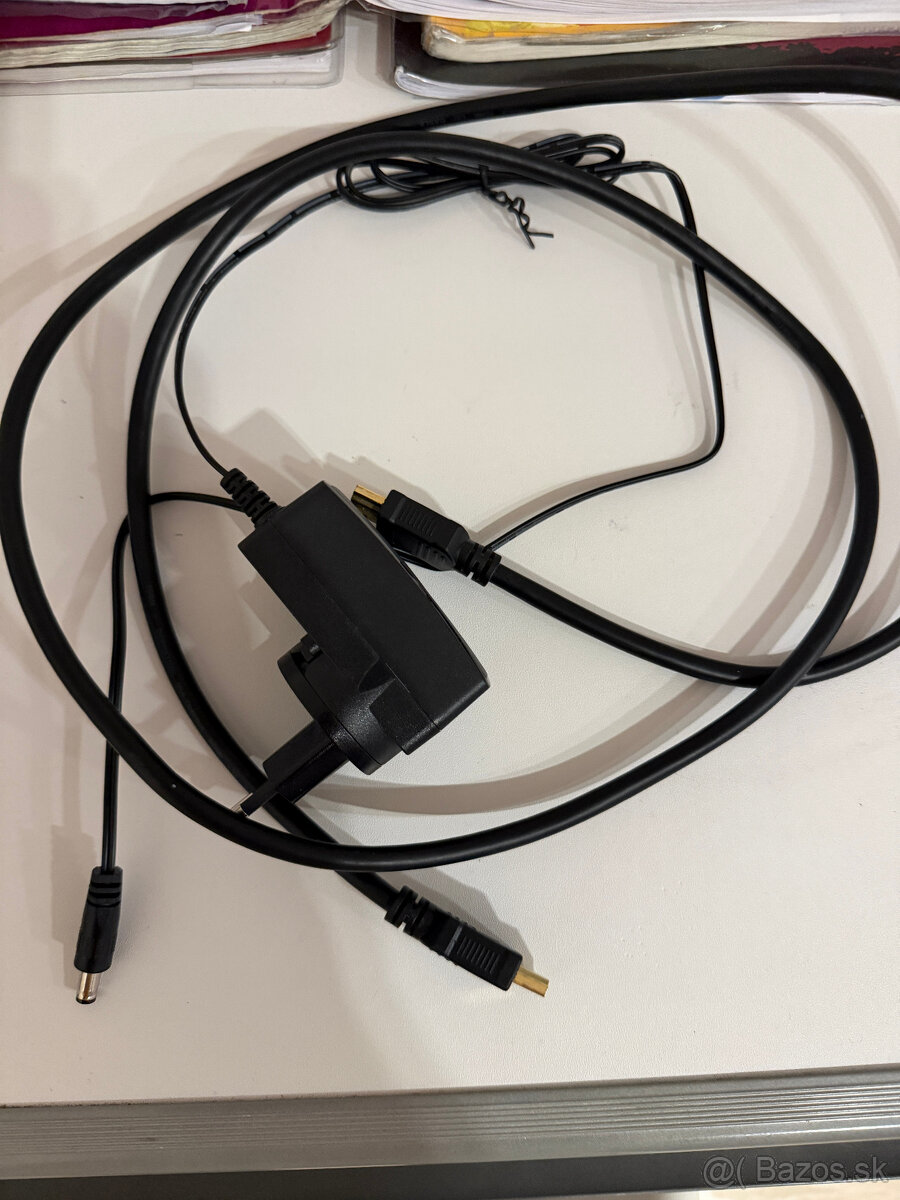

Power supply: External, DC 12V (1.5A), AC 100-240V

Case: Plastic

Dimensions (W x H x D): 114mm x 28mm x 114mm

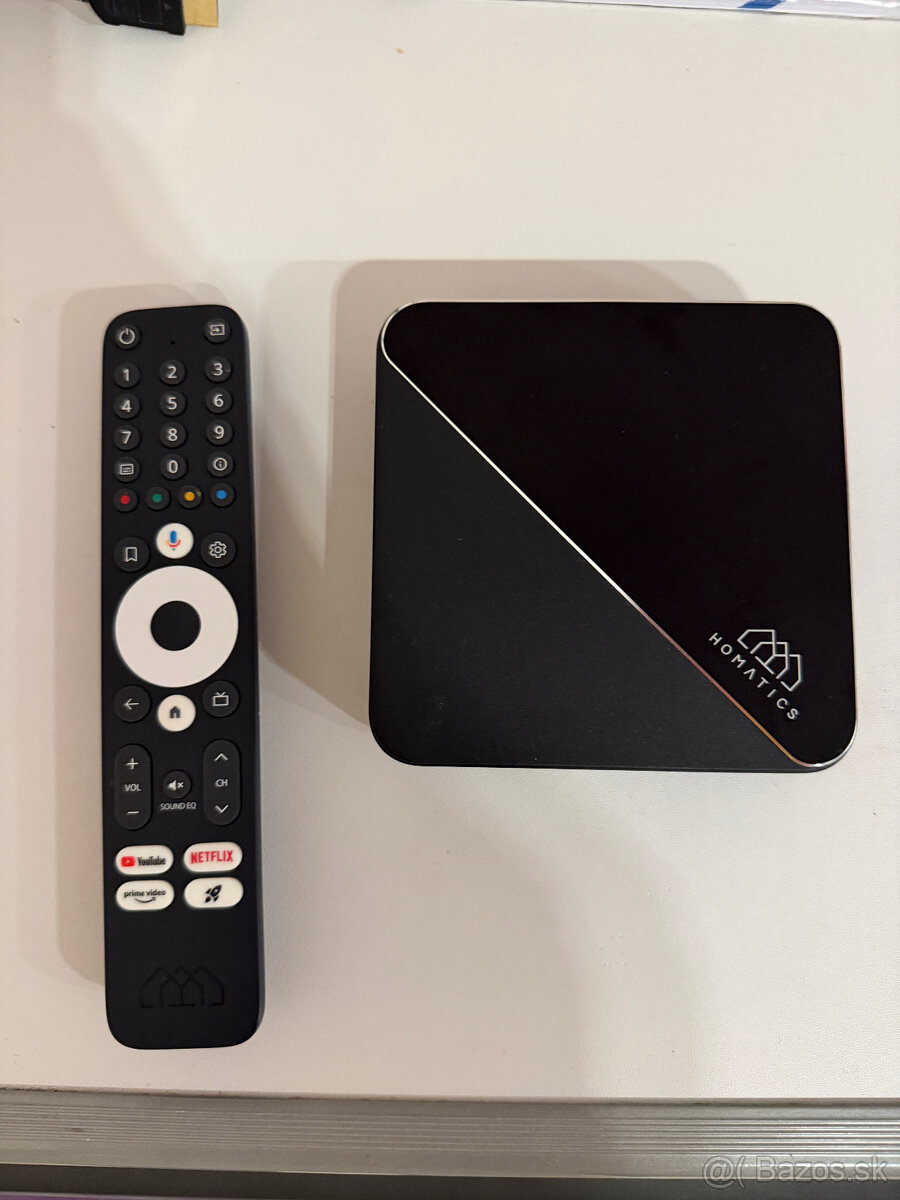

Remote: Bluetooth remote with microphone (voice search) and programmable app button. The remote also has IR emitter and can control TVs and A/V receivers via IR channel, and also control the media player via IR channel (when there is no Bluetooth connection to the media player) (using Google IR codes). New batches (May/2023 and later) are shipped with a bigger remote (added buttons: 0..9, color buttons, INFO, SUBTITLES), old batches were shipped with a small remote

IR control: Built-in IR receiver, supports Google IR codes only (Note: because of certified Android TV solution, Dune HD IR codes are not supported)



OS: Android TV 11.0 + Linux-based Dune HD OS (available via app *)

Netlix certification: Yes

Google Android TV certification: Yes

Widevine DRM: Widevine L1

Streaming services: Netflix, Amazon Prime Video, Disney+, Apple TV+, HBO Max, YouTube and many others (includes all services available via Android TV apps in Google Play Store) (depends on region and policies of particular services)

Filesystems: FAT16/FAT32 (read-write), exFAT (read-write), NTFS (read-only)

Video decoding: AV1, VP9 profile 2, H.265 (HEVC), H.264 (AVC), VC1, MPEG4, MPEG2, MPEG1

Video upscaling: Upscaling of SD and other resolutions up to 4K

3D video: Side-by-Side, Top-and-Bottom

Audio in streaming services: Up to Dolby Atmos (depends on a particular streaming service)

Audio in Dune HD media center: Most popular formats can be played, up to Dolby TrueHD with Atmos and DTS X, multichannel FLAC and multichannel SACD (DSD); see Dune HD media center specifications for more details
