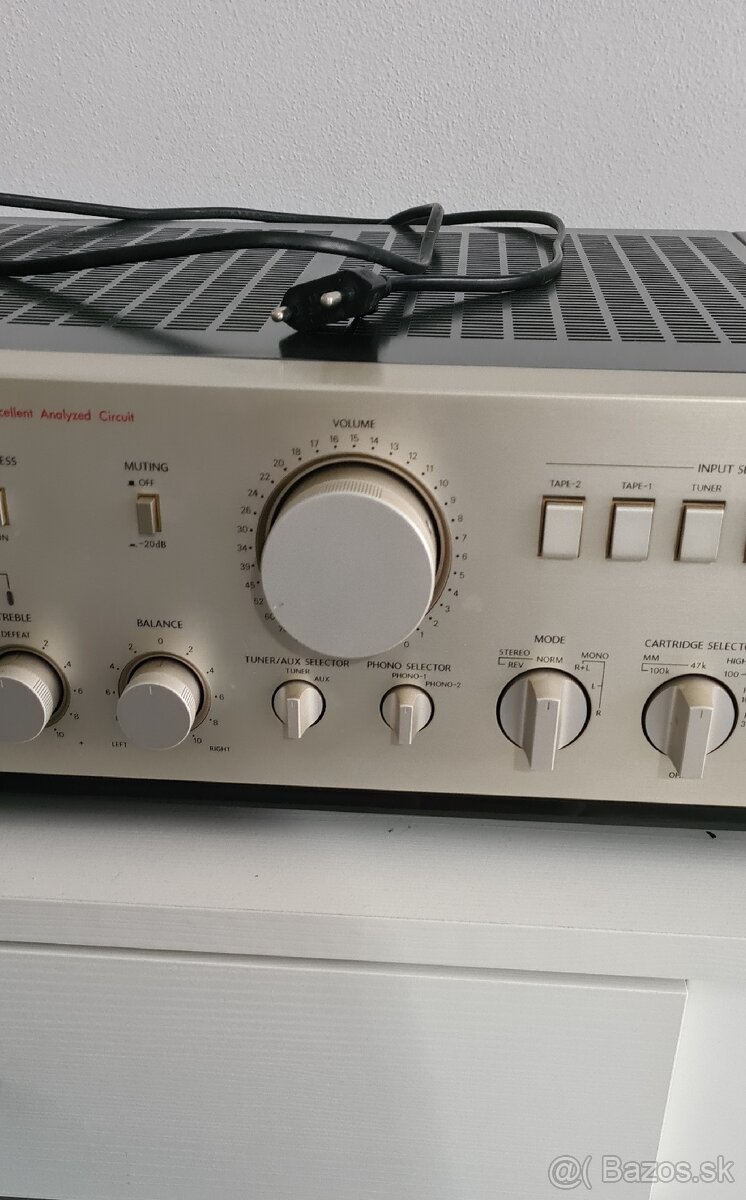

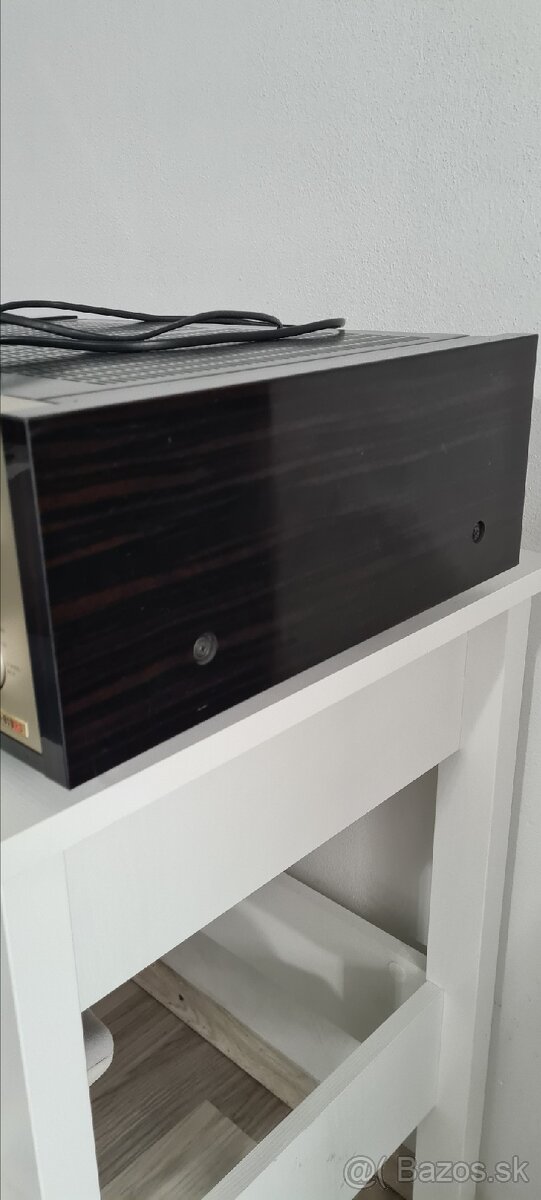

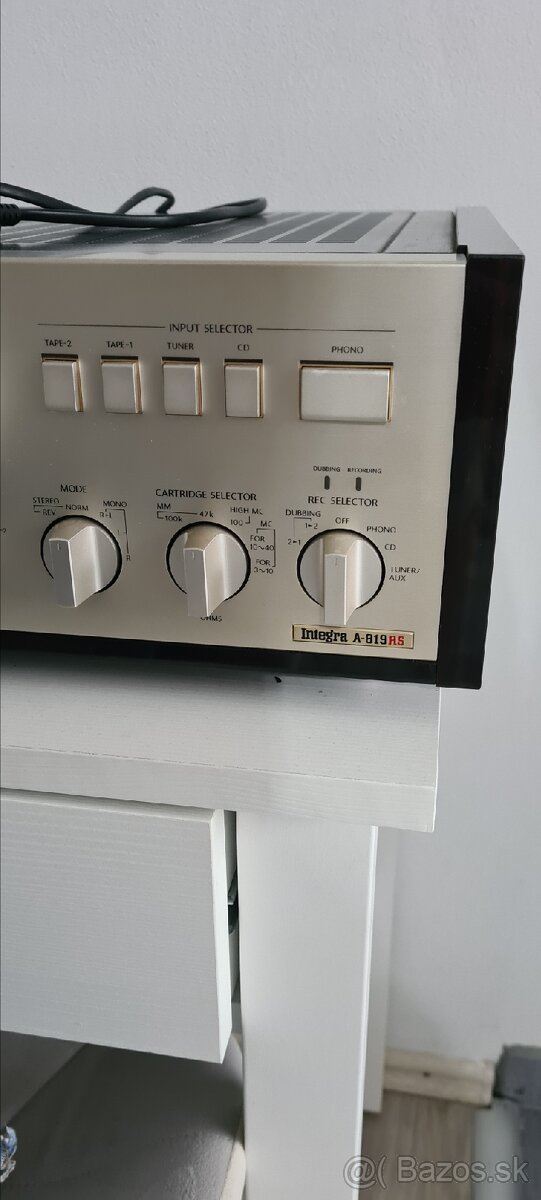

Onkyo integra A-819rs

Predám zachovalý ako nové zosilňovač od Onkyo.
Plne funkčný.
Bolo Vyrobené iba pre japonsky trh.
Transformator bolo vymenené z Onkyo zosilňovača . Tak to ide na 230 volt.
Aj posielam.


Type Stereo pre-main amplifier
Rated Output (20 Hz ~ 20 kHz) 110W + 110W (AUX → SP Out, 8 Ω, both channel drive)
Total harmonic distortion rate (20 Hz to 20 kHz) 0.007% (AUX → SP Out, at rated output)
0.005% (AUX → SP Out at 1/2 output)
0.003% (Phono MM → Rec Out, 3 V)
0.015% (Phono MC → Rec Out, 3 v)
Cross modulation distortion factor 0.004% (AUX → SP Out)
Powerbandwidth 5 Hz ~ 100 kHz (IHF / 3 dB, THD 0.2%)
Damping factor 100 (1 kHz, 8 Ω)
Frequency characteristic Phono → Rec Out : 20 Hz to 20 kHz ± 0.2 dB (RIAA deviation)
AUX → SP Out : 2 Hz ~ 100 kHz + 0 -3dB
Input Sensitivity / Impedance Phono MM : 2.9mV/47k Ω, 100k Ω
Phono High MC : 2.9mV/100 Ω
Phono MC : 180 μ V/100 Ω, 220 Ω
CD, Tuner, AUX, Tape Play : 150mV/47k Ω
Phono maximum allowable input
(1kHz/10kHz, 0.05%) Phono MM:270mV/1300mV
Phono High MC:270mV/1300mV
Phono MC:17mV/82mV
Output Voltage / Impedance Tape Rec : 150mV/560 Ω
Pre Out : 1.5V/600 Ω
S/N ratio (IHF short) Phono MM:88dB
Phono MC:70dB
CD, Tuner, AUX, Tape Play : 100 dB
Tone control
(Vol -16dB) Bass : ± 8 dB (70 Hz)
Treble : ± 8 dB (20 kHz)
Loudness +6dB(100Hz)
Subsonic filter 15 Hz, 6dB/oct.
Muting -20dB
Pwer 100 VAC, 50Hz/60Hz
Power consumption 205W (Electrical Appliance and Material Control Law Standard)
AC outlet Unswitched-1 (200W)
Switched : 2 (200W total)
External dimensions Width 465x Height 158x Depth 392 mm
Weight 15.5kg
