Rotel Ra-930AX zosilňovač

Predám plne funkčný zosilňovač od Rotel.

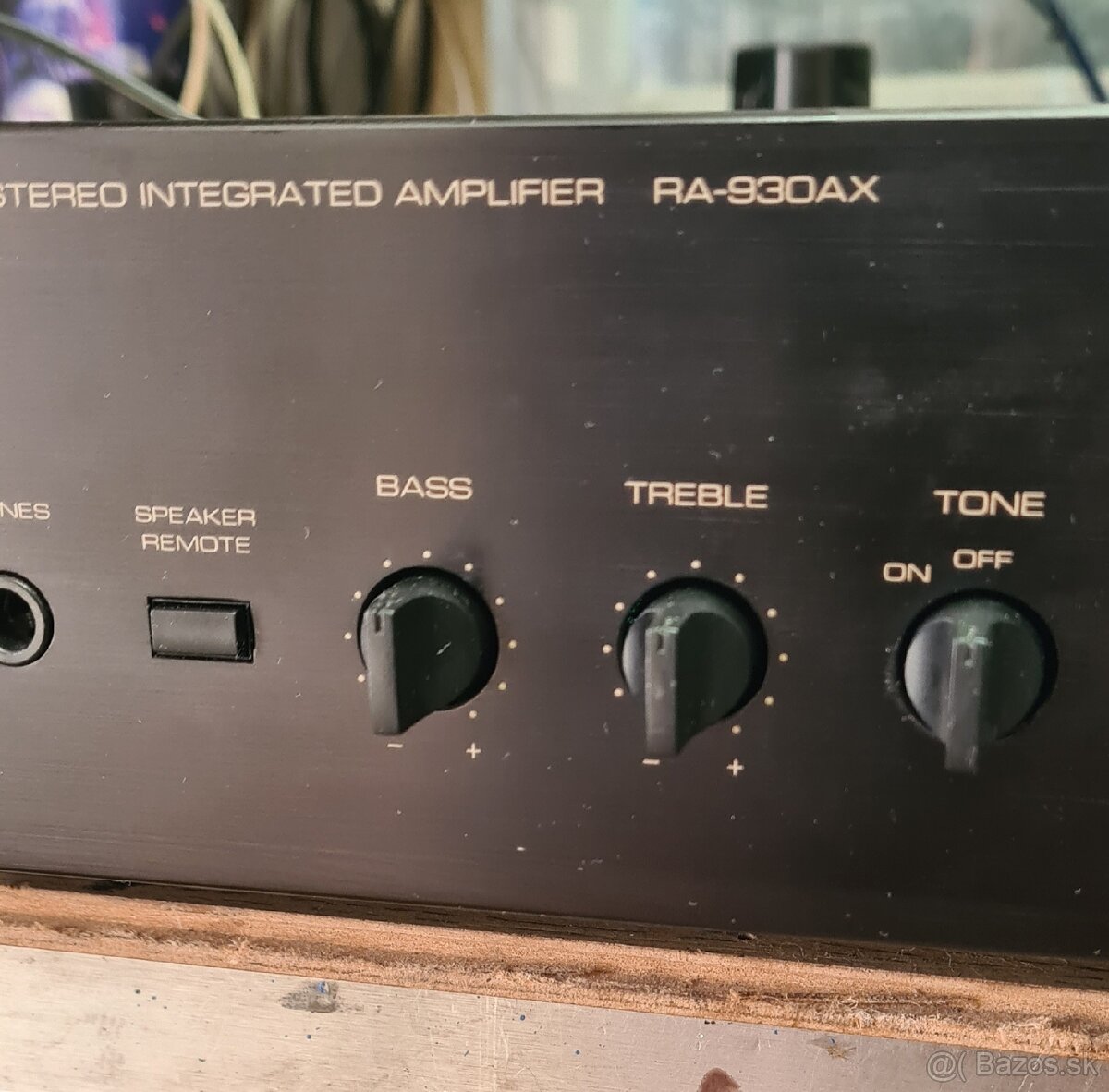

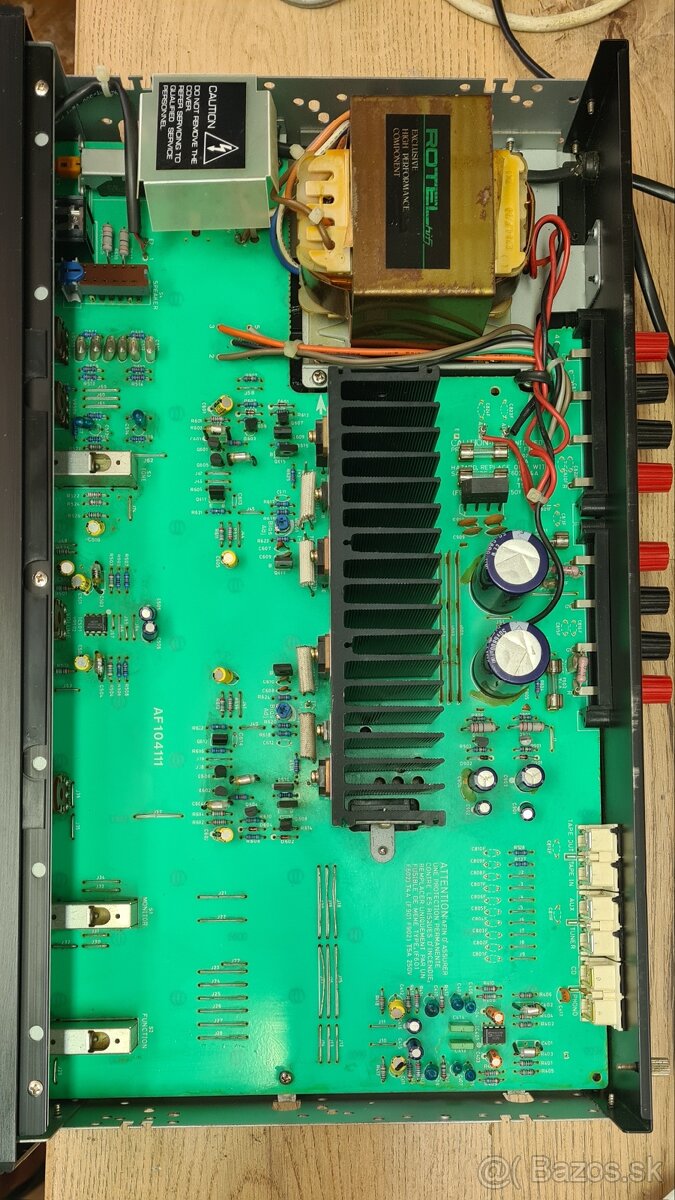

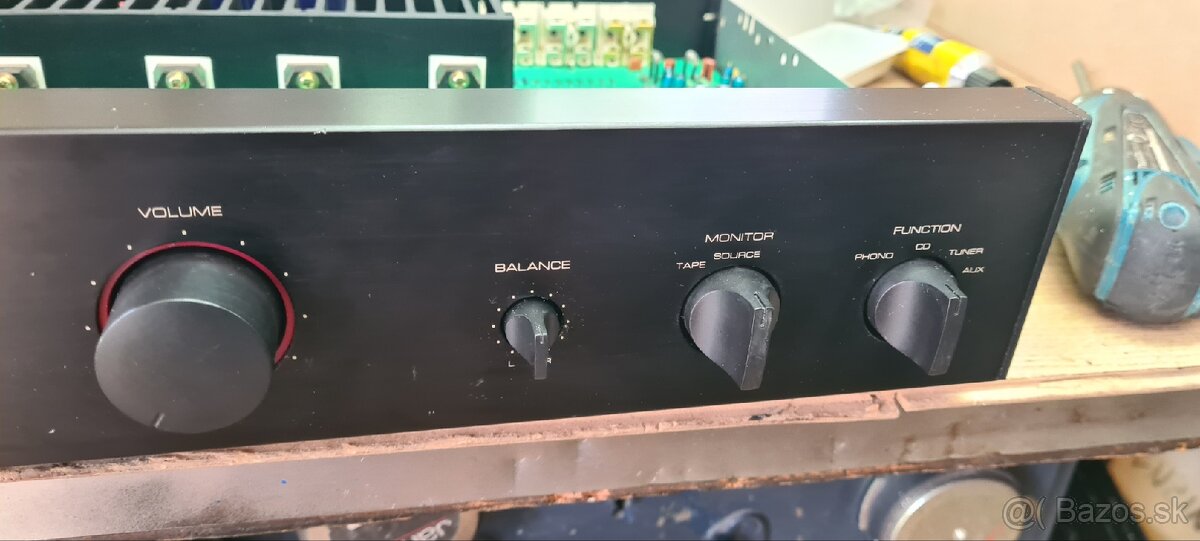

Stav ako na fotkách.
Je vyčistené.
Aj posielam.

Data
General

Manufacturer: Rotel
Model: RA-930 AX
Type: Integrated amplifier
Years of manufacture: 1992 - 1997
Made in: Taiwan
Color: Black
Power consumption: 180 watts
Dimensions: 440 x 92 x 304 mm (WxHxD)
Weight: 5.9 kg

Connections

Number of inputs:
Phono MM: 2.5 mV / 47 kOhm, 180 mV max.
CD: 150 mV / 20 kOhm, 5 V max. Tuner: 150 mV / 20 kOhm, 5 V max. AUX: 150 mV / 20 kOhm, 5 V max.

Tape 1, 2 Play: 150 mV / 20 kOhm, 5 V max.
Number of outputs:
Tape 1, 2 Rec:
Headphones: 6.3mm jack plug
2 pairs of speakers

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2 x 30 Watt RMS (20 - 20'000 Hz, 0,1 %)
4 Ohm: 2 x 50 Watt (1 kHz, 1 %)
Dynamic power:
8 Ohm:
4 Ohm:
Total harmonic distortion: < 0.3 %
Attenuation factor: 180 (20 - 20'000 Hz / 8 Ohm)
Frequency response:
Phono (RIAA): 20 - 15'000 Hz, ± 0,3 dB
High level: 10 - 40'000 Hz, ± 1 dB Signal-to-noise ratio:

Phono MM: 80 dB
High level: 100 dB
Tone control
Bass: ± 6 dB / 100 Hz
Treble: ± 6 dB / 10 kHz
Loudness: No
High Filter: No
Low Filter (Subsonic): No
Mute: No
Direct/Line-Straight: Yes

Special Features

MM/MC switch on the rear panel
Tone Linear Switch
